10000N Mechanical Shaker Table , 3500HZ Vibration Tester Machine

1 set
MOQ
negotiable
Price
10000N Mechanical Shaker Table , 3500HZ Vibration Tester Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Vibration Method: Sine &Random Vibration
Application: Electrical Parts
Sine Force: 10000N
Frequency: 3~3500HZ
Max. Speed: 1.8m/s
Vibration Direction: Vertical +horizontal Vibration
High Light:

10000N Mechanical Shaker Table

,

3500HZ Mechanical Shaker Table

,

3500HZ vibration tester machine
Basic Infomation
Place of Origin: CHINA
Brand Name: ASLI
Certification: CE, ISO, SGS
Model Number: ES-10
Payment & Shipping Terms
Packaging Details: PP film + Poly wooden box
Delivery Time: 30~45 days
Payment Terms: T/T, L/C, Western UnionD/A, D/P
Supply Ability: 100 sets per quarter
Product Description

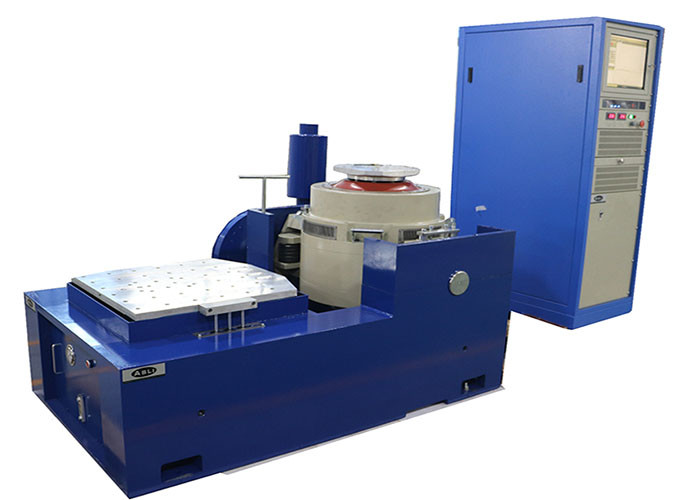

Electro-dynamic Vibration Mechanical Shaker Table XYZ Axis Testing High Frequency Vibration Tester


The system uses a digital power amplifier with sinusoidal pulse width modulation. The working principle is: using the high-frequency switching capability of the IGBT FET, the low-voltage signal input by the controller is amplified by the digital circuit and restored to the original signal, and then output to the moving coil of the vibrating table to promote the electric vibration. Taiwan movement.

The main components of the intelligent high voltage power amplifier are: front control, power amplifier module, protection circuit, power supply part and electric cabinet. The system adopts high voltage and small current output form, which reduces the power loss during transmission and achieves effective and reasonable impedance matching.



technical parameters:



Model

Rated Sine

Random

Force (N)

Frequency

(Hz)

 Acceleration (m/s2) (m/s)

(p-p)mm

 Max. Load (Kg) moving coil(Kg)

DiA coi l(mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450

Main Features

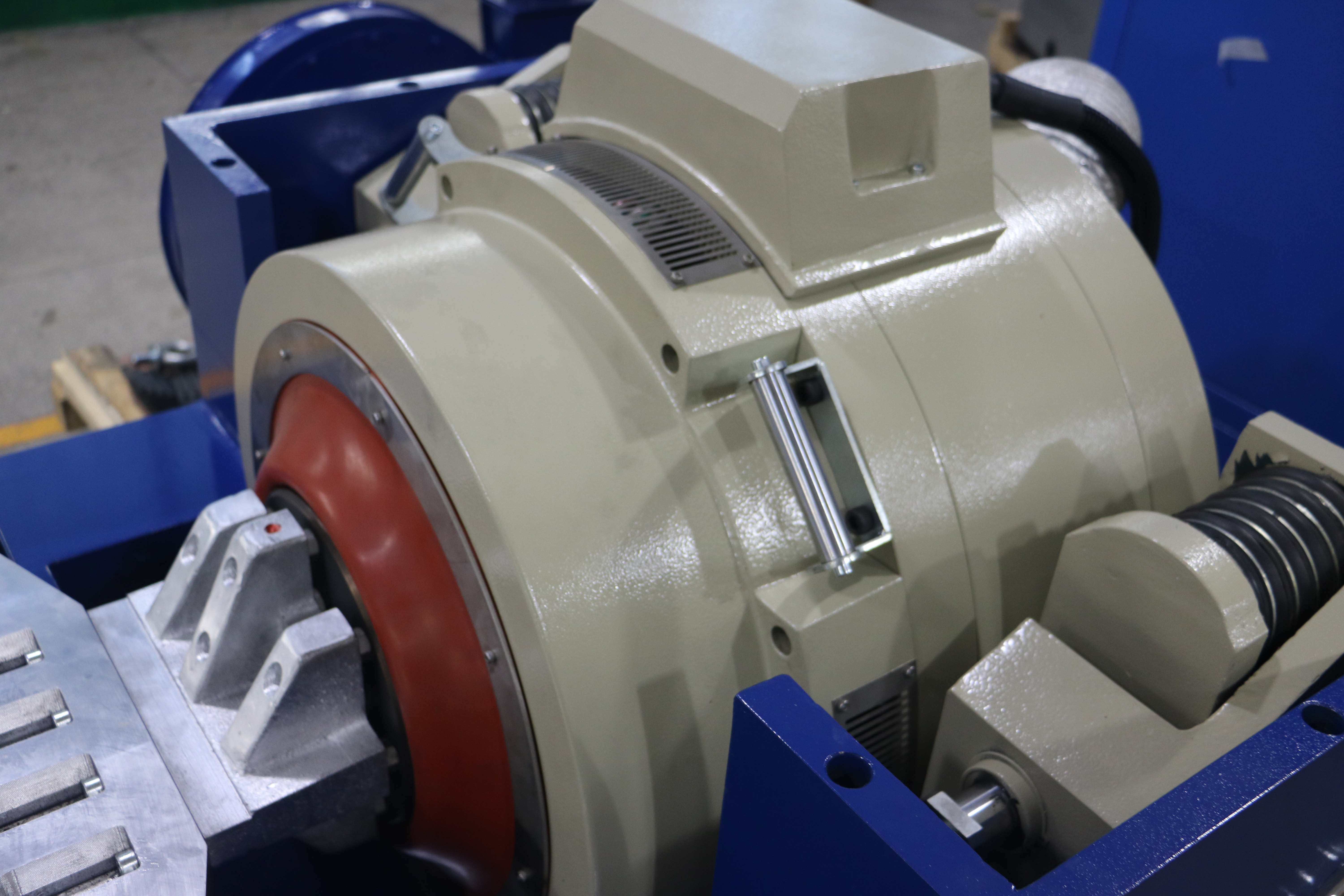

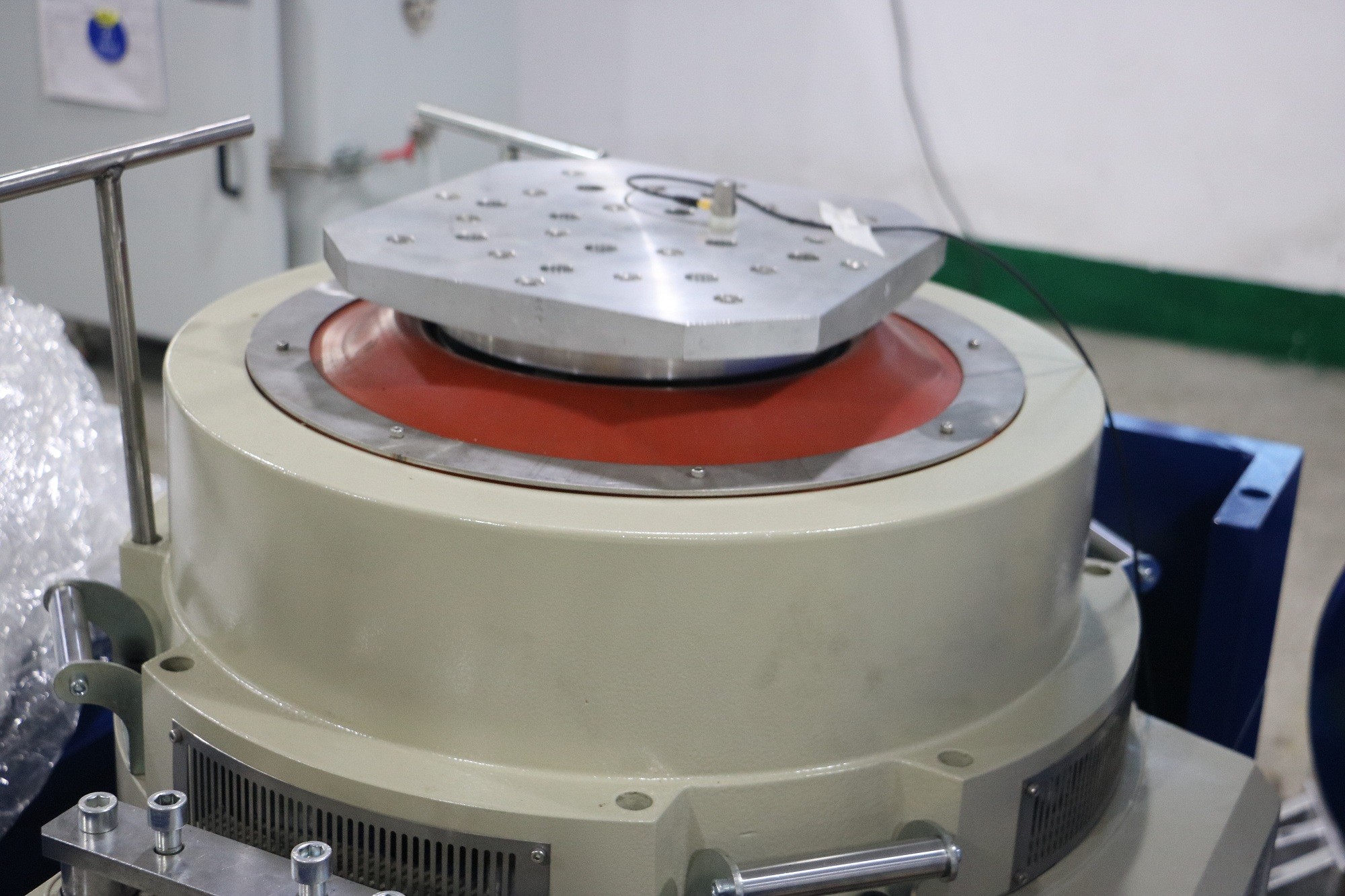

* An air-cooled electro-dynamic shaker
* vibration controller and power amplifier structured into all-in-one cabinet
* achieving 2400 newton's peak sine thrust.
* Xyz 3 axis testing

Control Functions
* Fixed-frequency sinusoidal vibration
* Swept vibration
* Random vibration
* Classical shock

User Benefits
* Easy installation can be done by user
* User interface: lcd touch screen for local mode and pc-windows (thru ethernet) for remote mode;
* Local mode: quick start a pre-defined test, dozens of test specifications can be stored;
* Remote mode: all operations of the system, including test defining and store the test specifications onto mostar, test control, test data review and documentation.
10000N Mechanical Shaker Table , 3500HZ Vibration Tester Machine 0
10000N Mechanical Shaker Table , 3500HZ Vibration Tester Machine 1
