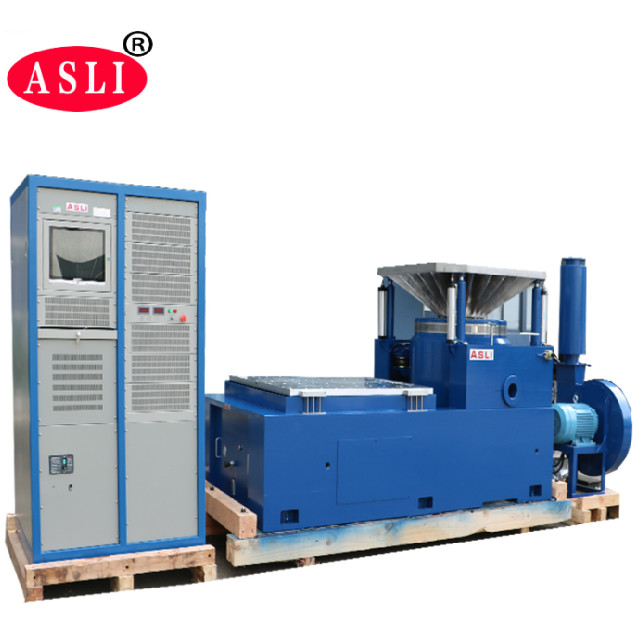

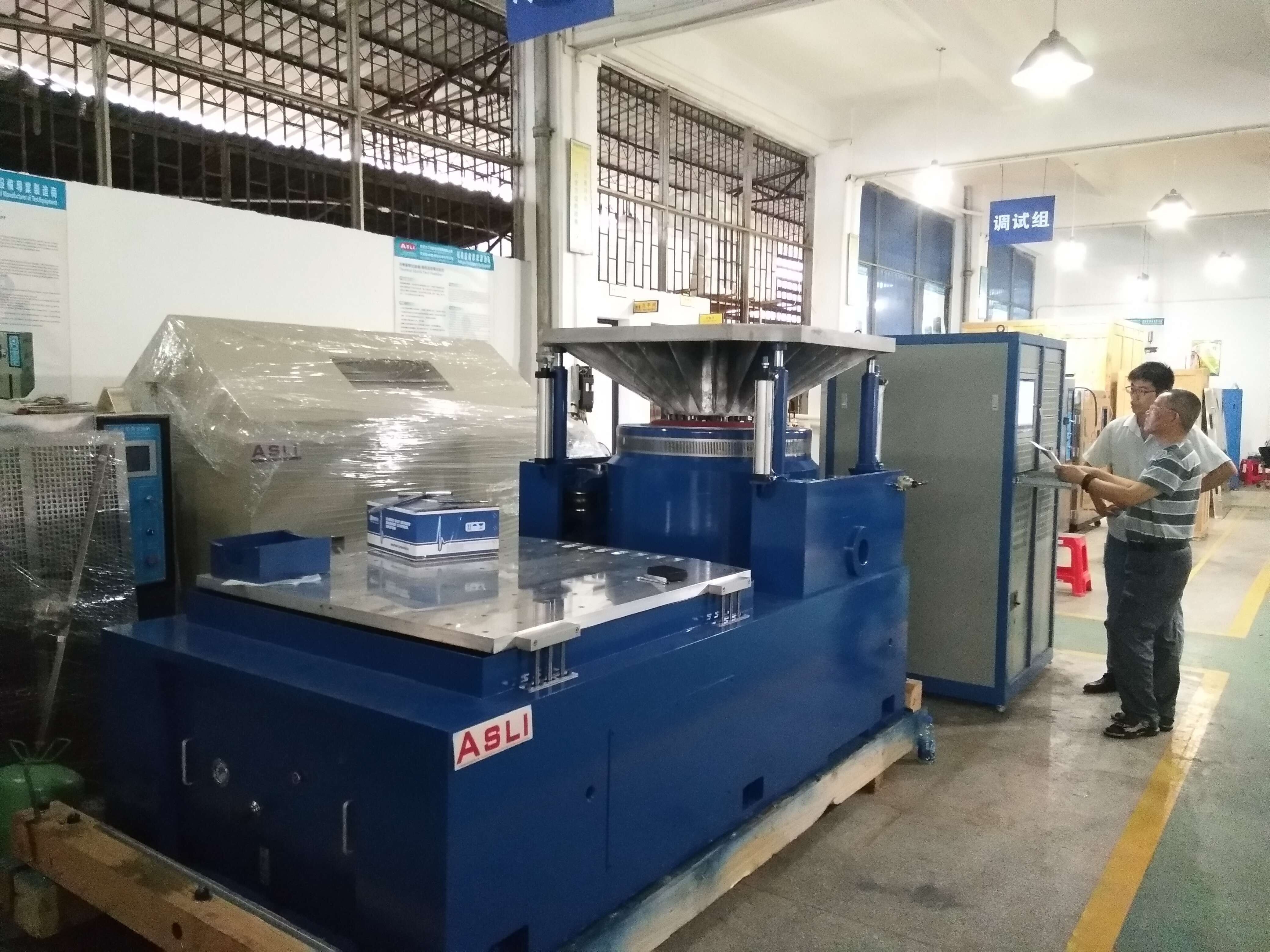

High Frequency Vibration Testing Machine / Vertical Skaker System Apply For IEC ISTA MIL STD Test Standard
Application
High Frequency Vibration Testing Machine / Vertical Skaker System Apply For IEC ISTA MIL STD Test Standard adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
Technical Parameters:
| System Specification | |||
| System Model: | ES- 60 | ||
| Frequency Range: | 3~3500 | ||
| Rated Force | Sine N | 60000 | |
| Random N | 60000 | ||
| Shock N | 120000 | ||
| Maximum Acc. | sine (m/s2) | 1000 | |
| Random (m/s2 rms) | 1000 | ||
| Shock(m/s2) | 2000 | ||
| Maximum Vel. | sine (m/s2) | 1.8 | |
| Shock(m/s2) | 1.8 | ||
| Maximum Disp. | Maximum Travel mm (p-p) |
51 | |
| Moving Coil | 60kgs | ||
| Dimension of moving coil | Dia 40mm | ||
| Vertical table Size customized | select according to test | ||

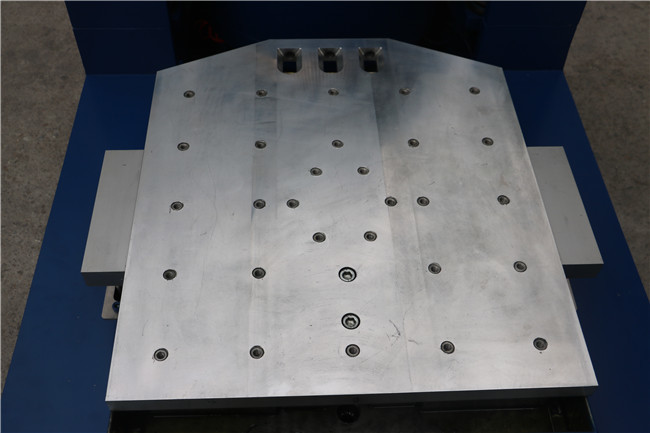

| Horizontal table sizecustomized size | setect according to test | ||
| Max Load: | 800kgs | ||
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
