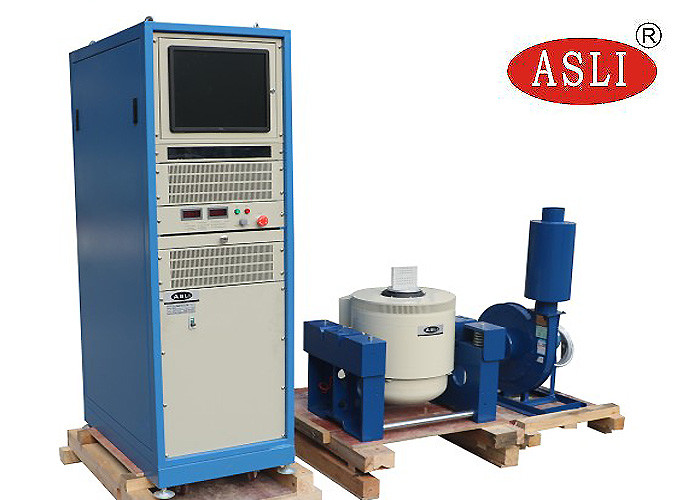

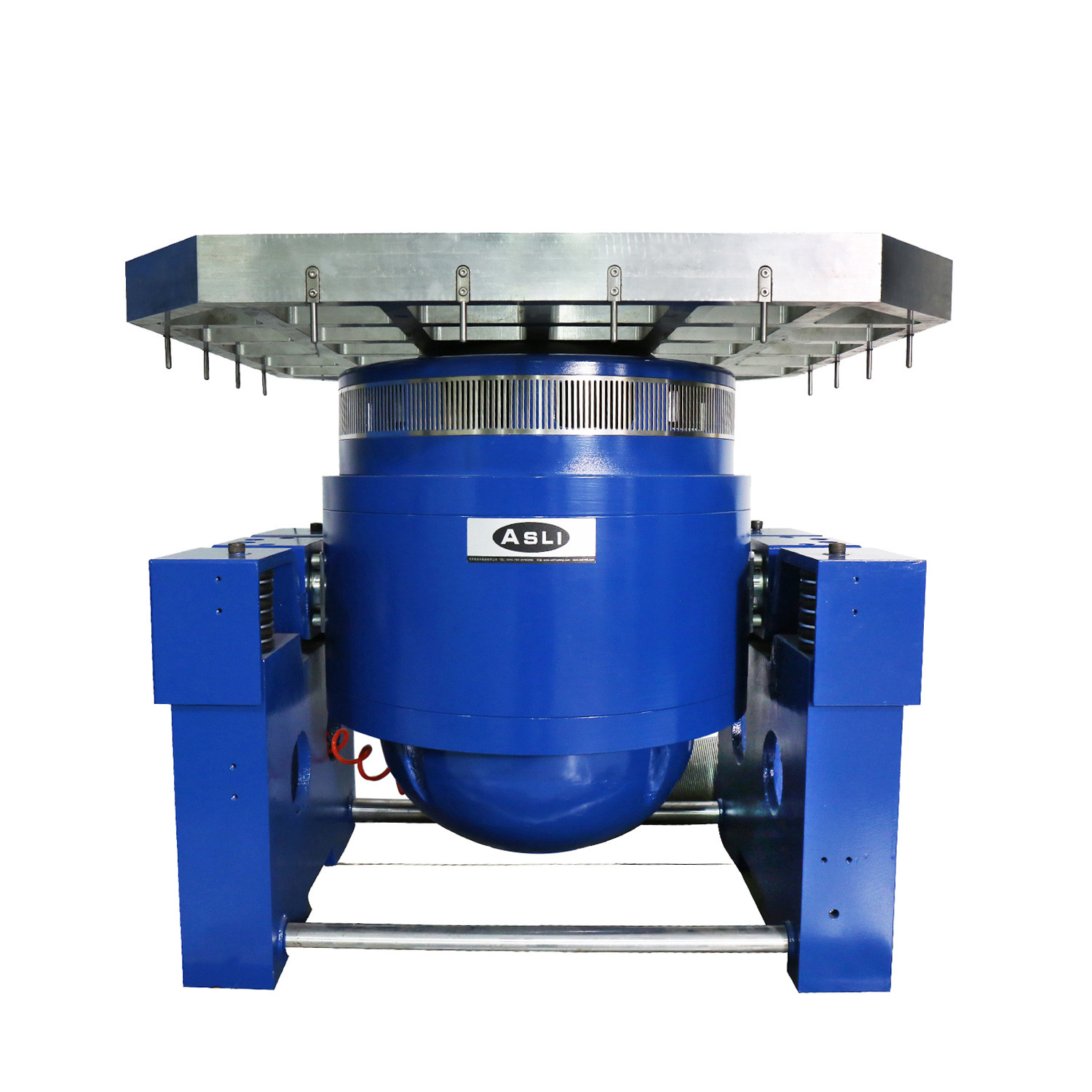

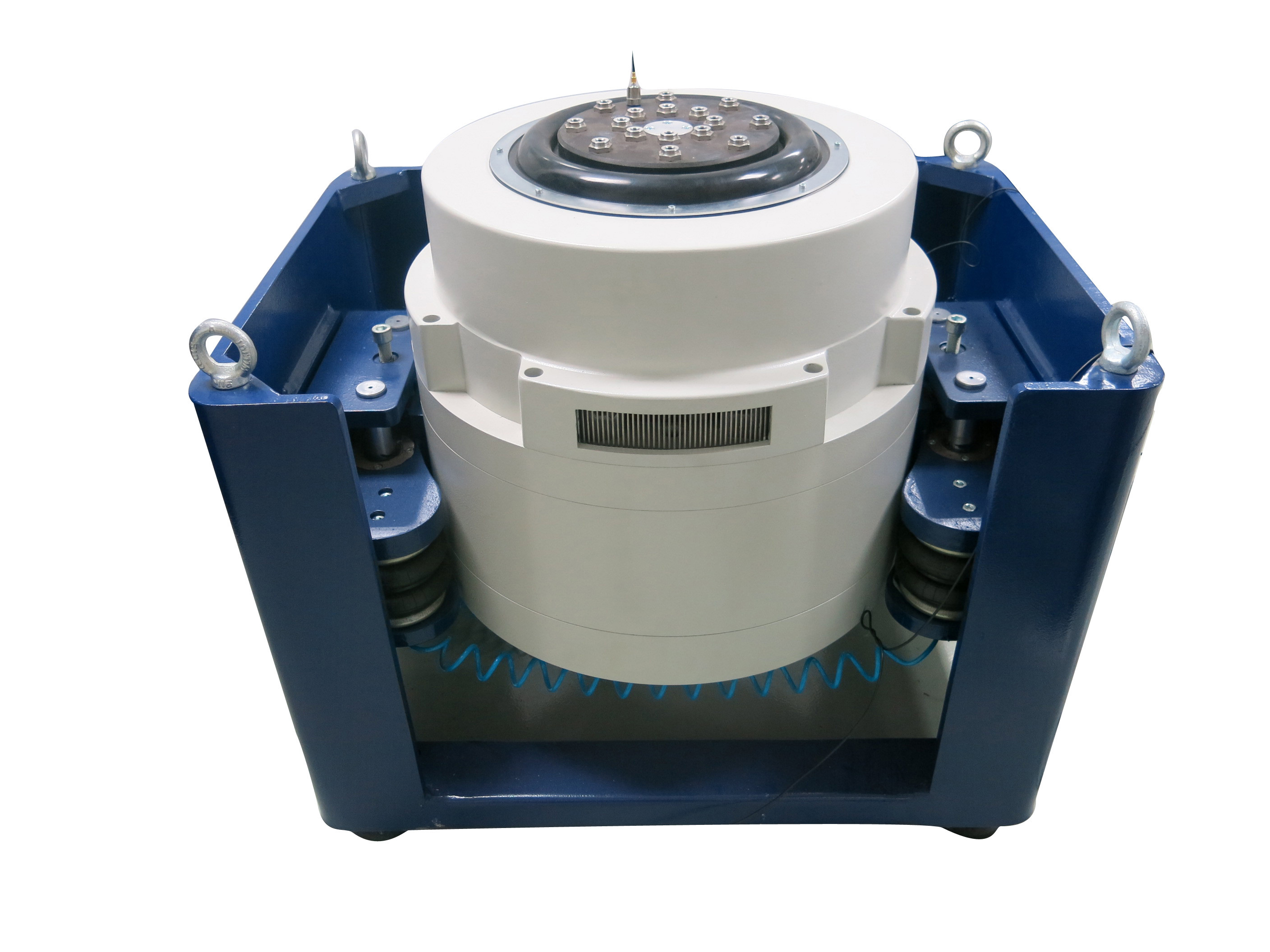

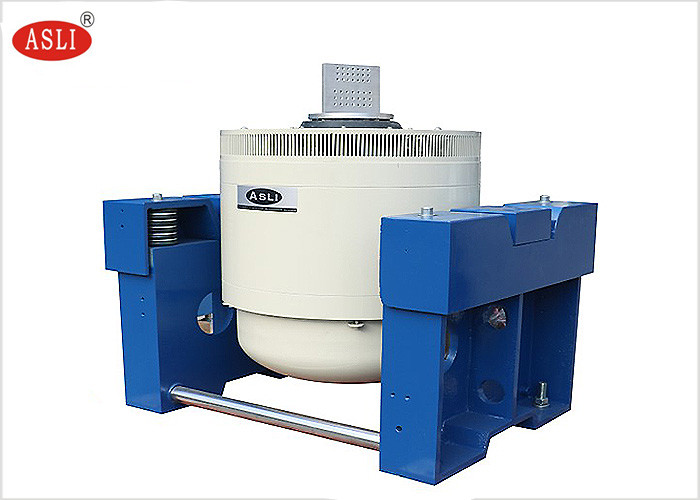

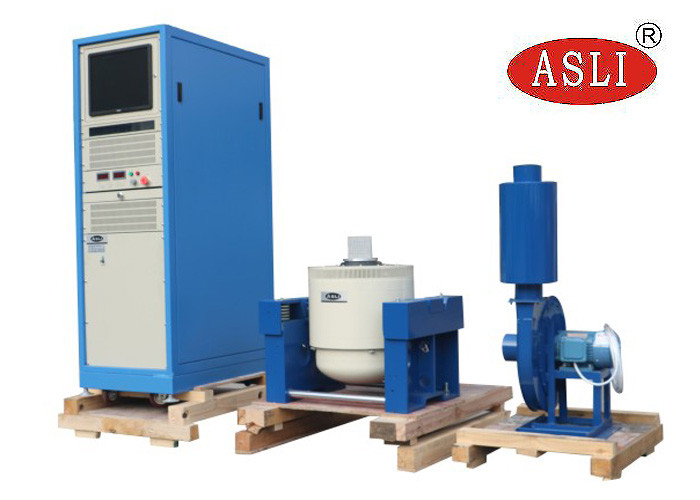

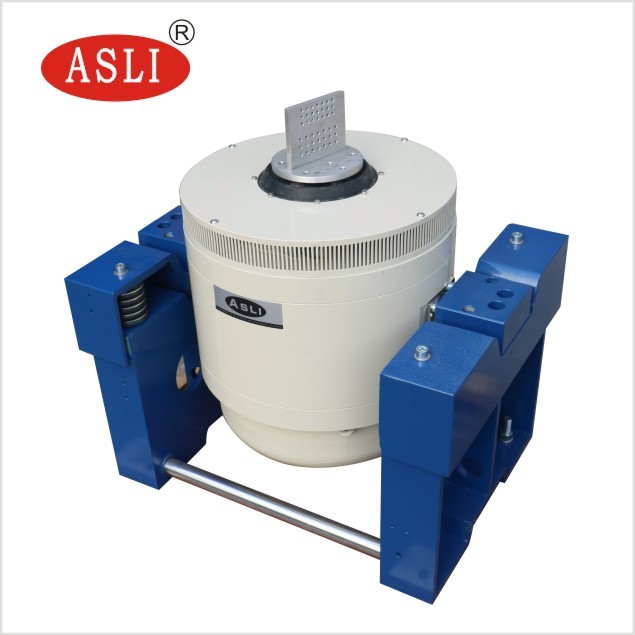

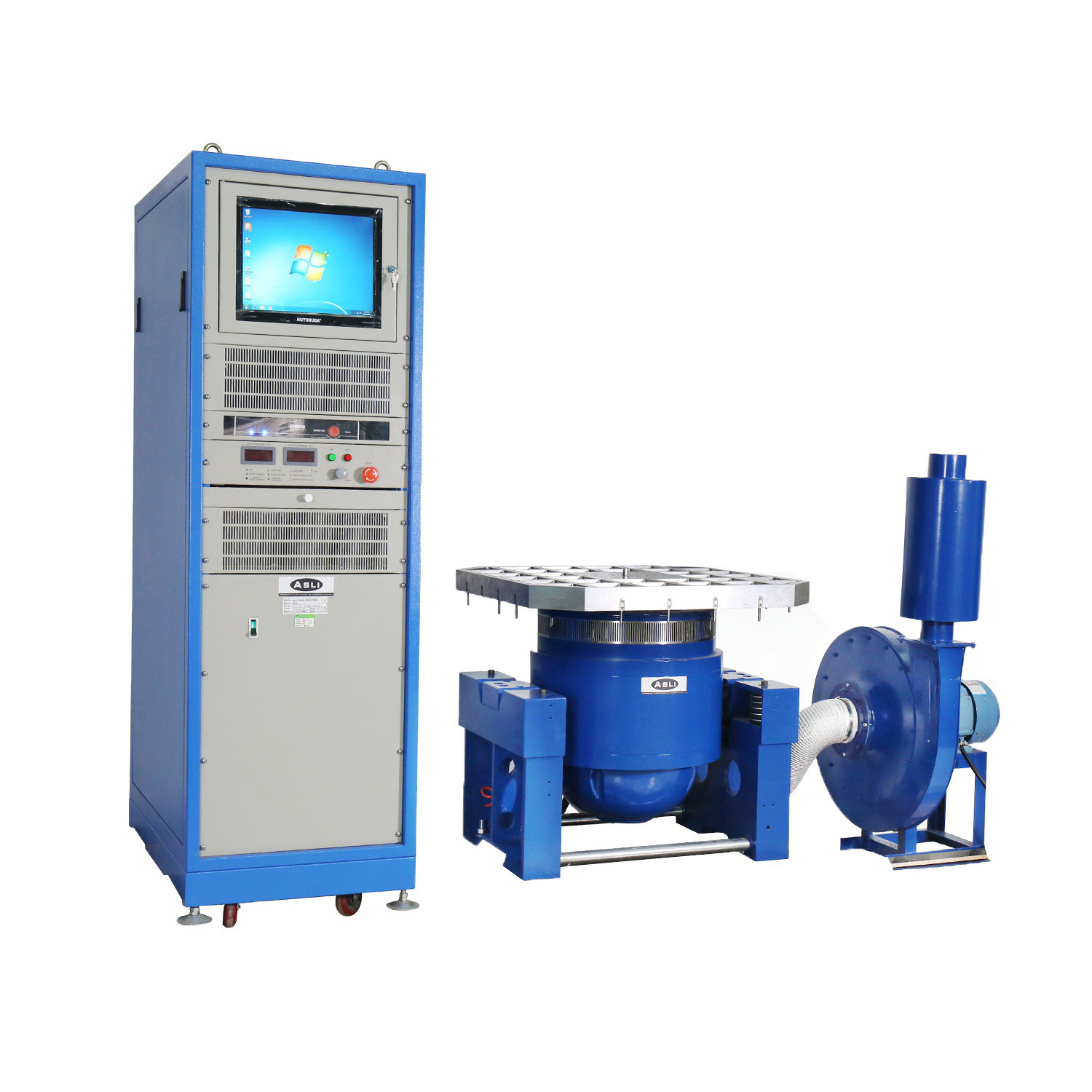

Small Shaker Vibration Testing Machine for Lab Testing
Test requirements:
1. IEC62133
2. UL1642
3. UN38.3
4. GB31241
Features:
1. Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control systems, the data of the whole process can be handing and output.
2. Display functions: dynamic display test curves, multi-Dan, on the number of data.
3. Curve recorder:real-time record of the test data, test data automatically, the test results can be stored, printed.
Technical Parameters:
| Model | ES-3 |
| Rated sine excitation force | 3000N |
| Rated random excitation force | 3000N |
| Shock excitation force | 6000N |
| Frequency range | 5-4,000Hz |
| Max. displacement | 25mm |
| Rated speed | 2m/s |
| Rated acceleration | 500m/s2 |
| First-order resonant frequency | 2,900 Hz±5% |
| Max. loading | 100kg |
| Vibration frequency | 3 Hz |
| Working table diameter | Φ150mm |
| Equivalent weight of moving parts | 2kg |
| Dimension | 764×530×660mm |
| Weight | About 480kg |
| Cooling method | Forced air cooling |
