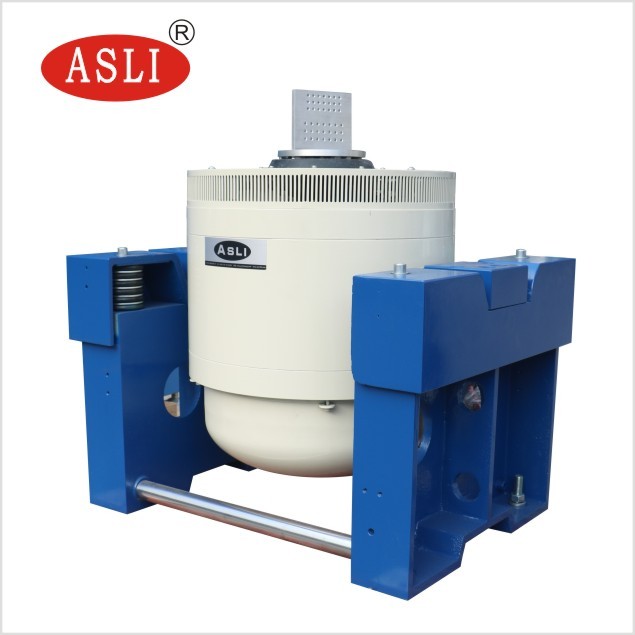

Air Cooled Vibration High First-Order Resonance Frequency And Wild Frequency Range 3 Axis VibrationTable
ES series electromagnetic vibration system simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.

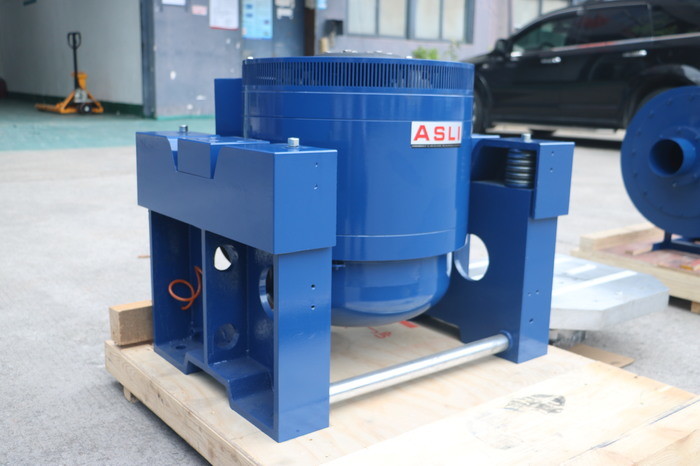

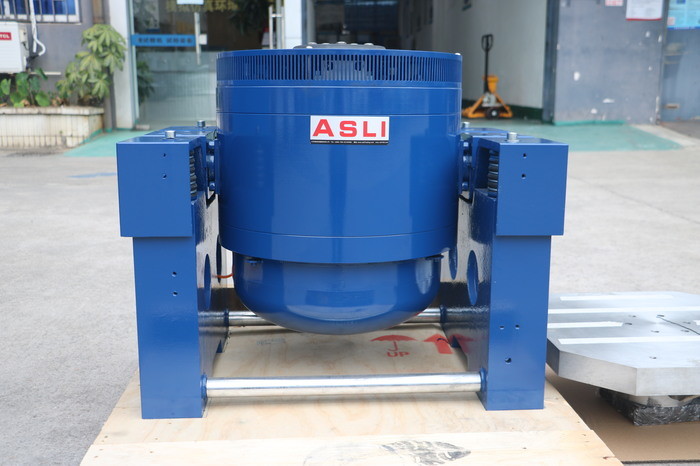

Horizontal and Vertical Test The air-cooled vibration test system with sliding table can be used for horizontal and vertical tests.
Easy to flip and provide simple two-way switching mode.

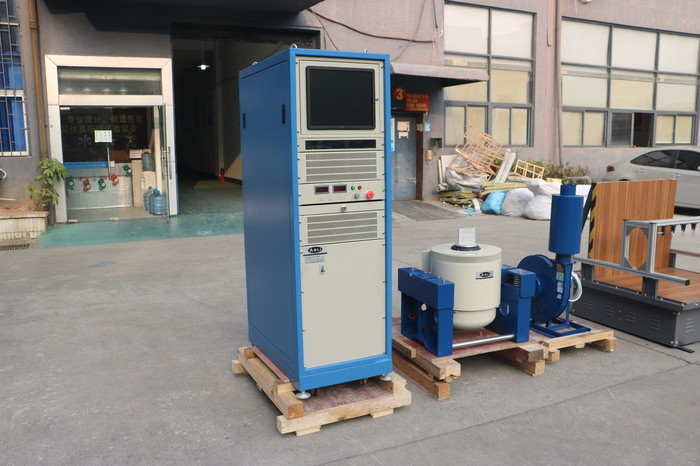

Power Amplifier with MOSFET or IGBT Module The power amplifier of our test equipment adopts high-performance MOSFET or IGBT module, which has ultra-high stability and reliability.Safety Performance Our air-cooled vibration test system complies with European standard test requirements.Its power amplifier is equipped with an emergency stop button, which can respond to emergencies in time.At the same time to meet the United States UL and European CE standard safety requirements.
Technical Parameters:
| Model | Rated Sine | Rated Random Force (N) | Frequency | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement | Max. Loading (Kg) | moving coil(Kg) | Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
The performance parameters
1. With forced air cooling
2. The force range 1kN ~ 70kN.
3. The ratio of random excitation force to sinusoidal excitation force is 1:1
4. 2 times sinusoidal impact force (3 times optional)
5. Peak displacement value :25mm, 40mm.51 mm.76 mm, 100 mm.

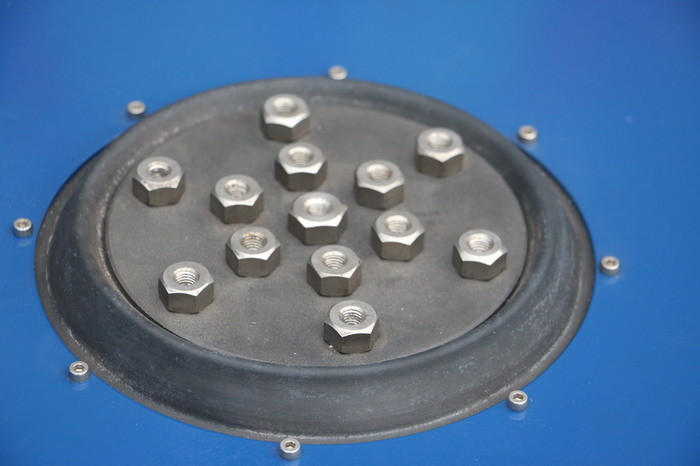

6. Lightweight armature with optimized design has strong anti-vibration performance
.
7. The air spring at the trunnion position has remarkable vibration isolation effect
8. The central chamber air spring has strong bearing capacity and excellent low-frequency performance
9. Dual magnetic circuit design, small magnetic leakage, uniform magnetic field.
10. Available test functions include sine and random functions.The impact.And more.
11. Excellent heat dissipation effect and low noise
12. Efficient and reliable power amplifier
