PCB Board 3000kg.F 2.0m/S Vibration Table Test Equipment Lab Testing Machine

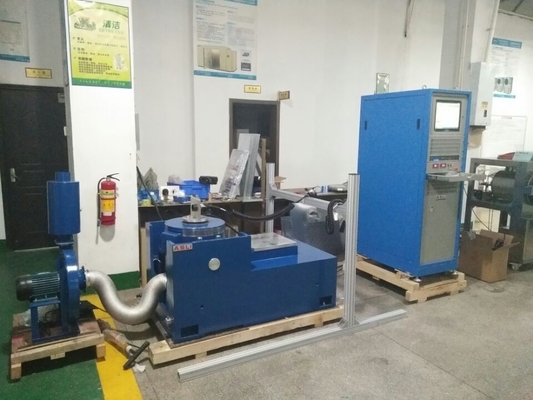

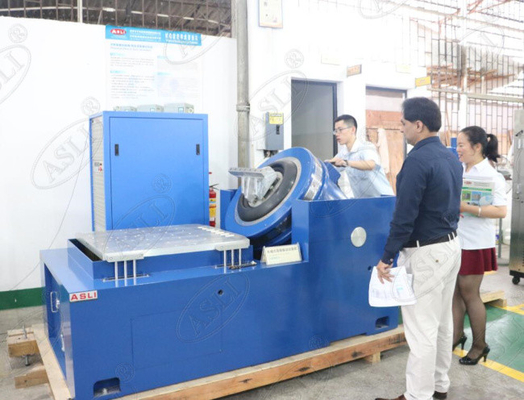

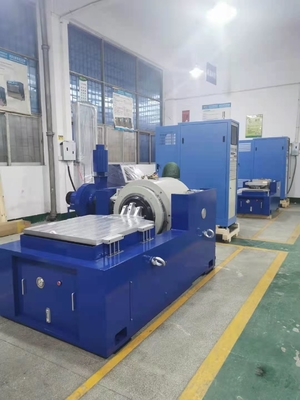

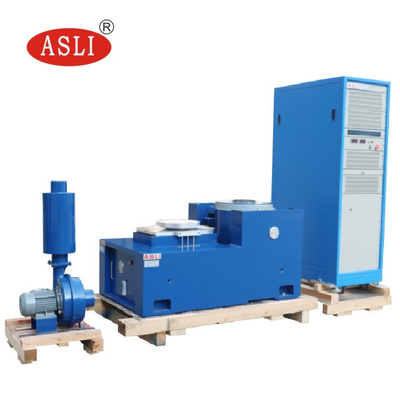

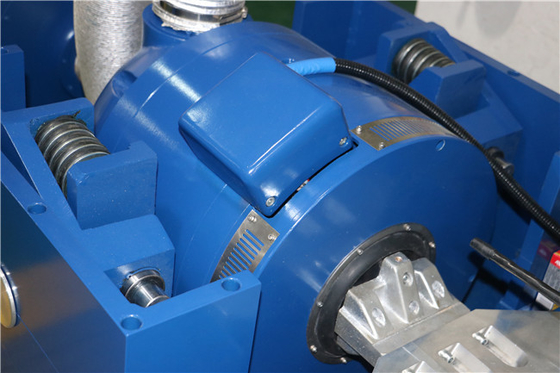

Electro-dynamic Vibration Testing System
Electromagnetic vibration table is widely used in defense, aviation, aerospace, communications, electronics, automobiles, home appliances, and other industries. This type of equipment is used for discovering the early faults, simulating the actual working condition and the structure strength test, the product application is wide, the application width is obvious, the test effect is remarkable and reliable. Sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, time control, full function computer control, simple fixed acceleration/fixed amplitude. Equipment through continuous failure to run 3 months of testing, stable performance, reliable quality.
PERFORMANCE DATA SHEET
| Shaker (ES-30) | ||
| Sine force (peak) | 30kN | |
| Shock force (peak) | 60 kN | |
| Frequency range | 5~2,600 Hz | |
| Displacement (continuous) | 100 mm | |
| Max. Velocity | 1.8 m/s | |
| Max. Acceleration | 75 G | |
| Armature Diameter | 445 mm | |
| 1st order resonant frequency | 2,400 Hz | |
| Allowable eccentric moment | >500 Nxm | |
| Armature weight | 40 kg | |
| HE/ST screw dimension | M10 (metric) | |
| Axial vibration isolation frequency | <3 Hz | |
| Max. Payload | 500 kg | |
| Magnetic flux leakage | ≤1 mT | |
| Dimensions (L×W×H, unpacked) | 1,330x860x1,250 mm | |
| Weight (unpacked) | 2,500 kg | |
| Installation | Rubber mat (anchor bolts required) | |
| Power Amplifier | ||
| Amplifier output | 30 kVA | |
| SNR | >65 dB | |
| Rated output voltage | 120 Vrms | |
| Amplifier efficiency | > 90% | |
| Dimensions (L×W×H, unpacked) | 800x900x2,100 mm | |
| Weight (unpacked) | 500 kg | |
| Blower (Model# PBL-W30) | ||
| Air volume | 0.46 m3/s | |
| Power | 7.5 kW | |
| Air duct diameter | 200 mm | |
| Air pressure | 8.8kPa | |
| Installation | Able to connect to ceiling (up to two 90 degree bends), max 20’ run | |

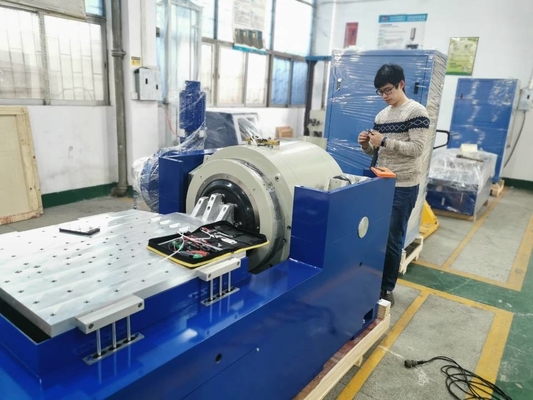

| Horizontal Slip Table | ||
| Dimensions | 600x600 mm | |
| Thickness | 45 mm | |
| Frequency limit | 2,000 Hz | |
| Effective mass | 54 kg | |
|
Note: 1. High pressure oil-film bearing is used for better uniformity. |
||
| Vibration Controller and Accelerometer | ||
| Vibration Controller | Vibration Controller with Sine ,Random, Shock and Self Calibration. | |
| Accelerometer | 100mV/g, Range: 50g, Working Freq.: 1-10kHz, Weight: 11gram, with 10ft low noise cable | |
| Other supported functions/accessories | ||
| Environmental chambers | Supported | |
| Mobile devices | Customizable | |
| Insulation boards | Customizable | |
| Fixture | Customizable | |
| Working environment of the system | ||
| Temperature range | 0-40℃ | |
| Humidity range | 0~90% , no condensation | |
| Power requirements | 380V/3ph/50Hz, 40kVA | |
| Compressed air pressure | 0.6 Mpa | |
Specification
| Name | Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab testing | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
