Circuit board automobile 3500HZ Vibration Table Test Equipment With 25mm Displacement
Product Details
| Sine Force: | 6000N | Speed: | 1.8m/s |
|---|---|---|---|
| Displacement: | 25mm | Frequency: | 3~3500HZ |
| Loading: | 180kg | Acceleration: | 100g |
| Armature: | 450mm | Brand: | ASLI |

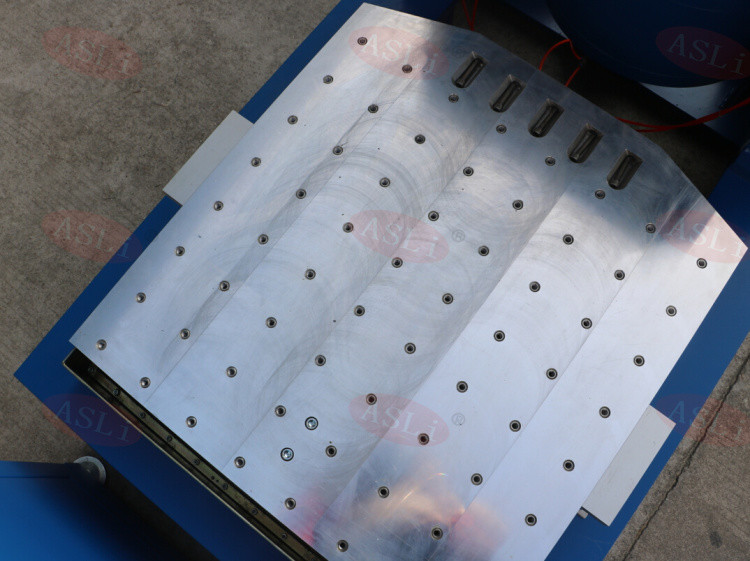

| Table Size: | 500x500mm | ||
| Highlight |
automobile vibration table test equipment,3500HZ vibration test equipment,25mm displacement vibration table |
||
Product Description
The Electro-dynamic Vibration Testing System is widely used across defense, aviation, aerospace, communications, electronics, automotive, and home appliance industries. This equipment is designed for discovering early faults, simulating actual working conditions, and performing structural strength tests. Its broad application range delivers remarkable and reliable test results.
The system supports sine wave, FM, sweep, programmable, frequency multiplier, logarithm, maximum acceleration, amplitude modulation, and time control modes. It features full-function computer control with simple fixed acceleration and fixed amplitude settings. The equipment has undergone continuous failure-free operation for 3 months of testing, ensuring stable performance and reliable quality.
| Item | Description |
|---|---|
| Sine Force | 5.88 KN |
| Shock Force | 11.76 KN |
| Frequency Range | 5–3000 Hz |
| Displacement | 51 mm |
| Max. Velocity | 2 m/s |
| Max. Acceleration | 981 m/s² (without loading) |
| Armature Diameter | 200 mm |
| Permitted Load Torque | >300 N•m |
| Effective Armature Mass | 6 kg |
| Max. Load Capacity | 100 kg |
| Magnetic Leakage | ≤1 mT |
| Axial Vibration Isolation Frequency | <3 Hz |
| Load Attachment | 16 stainless steel M8 inserts |
| Dimension (L×W×H) | 850 × 665 × 760 mm |
| Approx. Weight | 990 kg |
Automobile Battery EN50604 IEC62133 UN38.3 Vibration Test Bench for Lab Testing
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design with low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation, providing excellent eccentric load capacity.

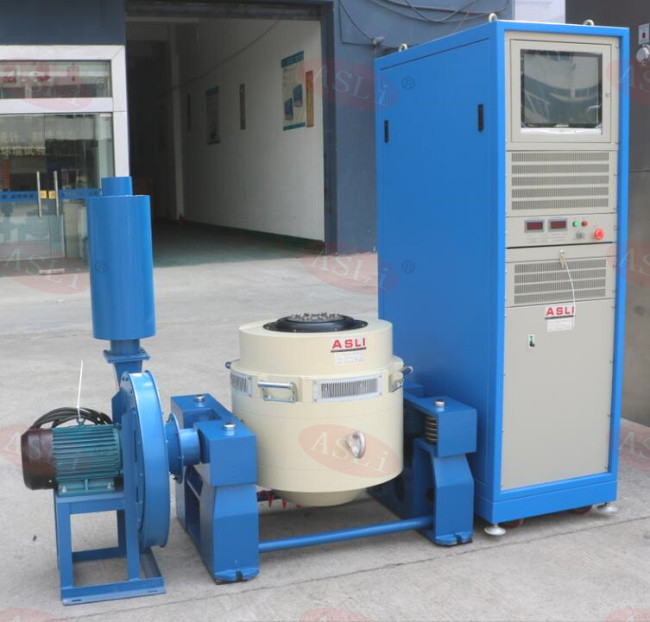

- Trunnion isolation foundation dedicated to vibration isolation, with convenient mobile installation.
- Advanced technology in the moving system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing with small balloon effect, raising the vibration table bearing capacity and improving low-frequency performance.
Product Highlights
ASLI electro-dynamic vibration test system: 6000N sine force, 3~3500HZ, 25mm displacement, 180kg load. Ideal for circuit board and automobile testing. Stable, reliable, computer-controlled, with custom options.
