| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed (m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil (Kg) |
Dimension of Moving coil (mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |

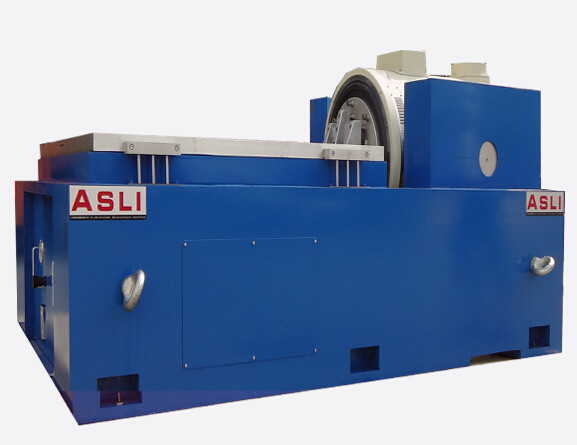

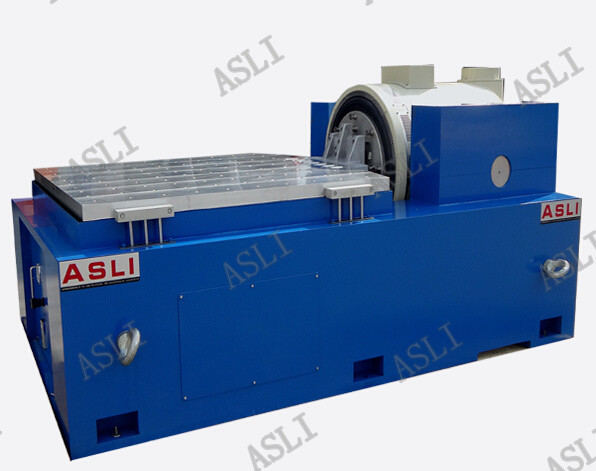

Technical parameters of Vibration Testing Equipment horizontal expander:
Technical parameters of vibration tester machine vertical expander:
Package about shock tester machine:
PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Exhibition about test equipment:
If you have any question about those vibration shaker, please feel free to contact with us,thank you .
