1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems

1
MOQ
USD 20000~50000
Price
1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Sine Force: 10000N
Frequency: 3~3500HZ
Speed: 1.8m/s
Vibration Direction: Vertical Vibration
Power: 380v 3 Phase
Acceleration: 100g
Displacement: 51mm
High Light:

1000kg.f electrodynamic shaker systems

,

2000Hz electrodynamic shaker systems

,

2000Hz vibration test systems
Basic Infomation
Place of Origin: China
Brand Name: ASLI
Certification: CE
Model Number: ES-10
Payment & Shipping Terms
Packaging Details: export standard plywood case
Delivery Time: 30-35 work days after deposit
Payment Terms: T/T
Supply Ability: 30 set per month
Product Description

Superior Manufacturer Energy-Efficient High Acceleration Electro-Dynamic Shaker Systems





Superior Manufacturer Energy-Efficient High Acceleration Electro-Dynamic Shaker Systems Technical Parameters

Electrodynamic shake vibration tester adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

Model

Rated Sine

Force (N)

Rated Random

Force (N)

Frequency

Range (Hz)

 Rated Acceleration (m/s2) Rated Speed (m/s)

Rated displacement

(p-p)mm

 Max. Loading (Kg) moving coil (Kg)

Dimension of

Moving coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a  3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450
ES-120 120000 120000 3-2200 1000 1.8 51 1100 90 Φ500



1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 0



1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 1

1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 21000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 31000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 4

Technical parameters of Vibration Testing Equipment horizontal expander:



1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 5





Technical parameters of vibration tester machine vertical expander:



1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 6


Electrodynamic shake vibration tester adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

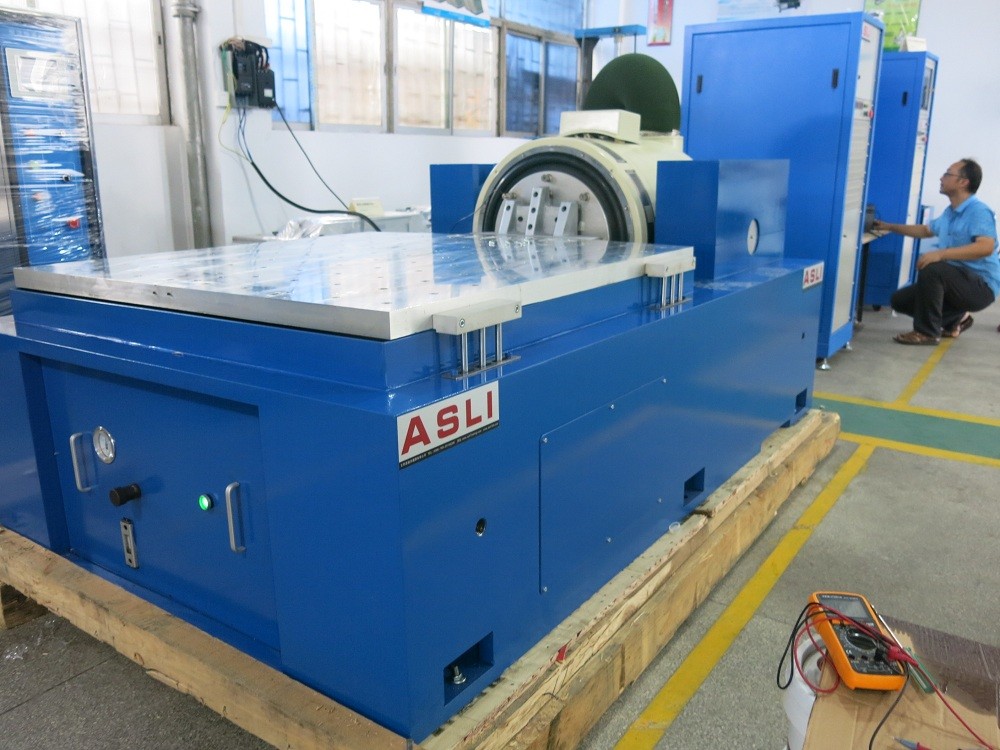

Product Pictures with Electrodynamic Vibration Shaker System:

1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 7



1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 8




Package about shock tester machine:



PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.





1000kg.F Electrodynamic Shaker Systems , 2000Hz Vibration Test Systems 9





Exhibition about test equipment:



7



If you have any question about those vibration shaker, please feel free to contact with us,thank you .
