Laboratory Electronic 600kg.f Vibration Shaker Table IEC Standard
Product Details
| Customized Support: | OEM | Brand: | ASLI |
|---|---|---|---|
| Place Of Origin: | Guangdong, China | Power: | Electronic |
| Certificate: | ISO 9001:2008 | Packing Material: | Poly Wood Case |
| Vibration: | 3 Axis | Vibration Force: | Customized |
| Table Size: | Customized | Max Load: | 100Kg |
| Highlight |
600kg.f vibration shaker table,IEC vibration shaker table,IEC laboratory test machine |
||
Product Description

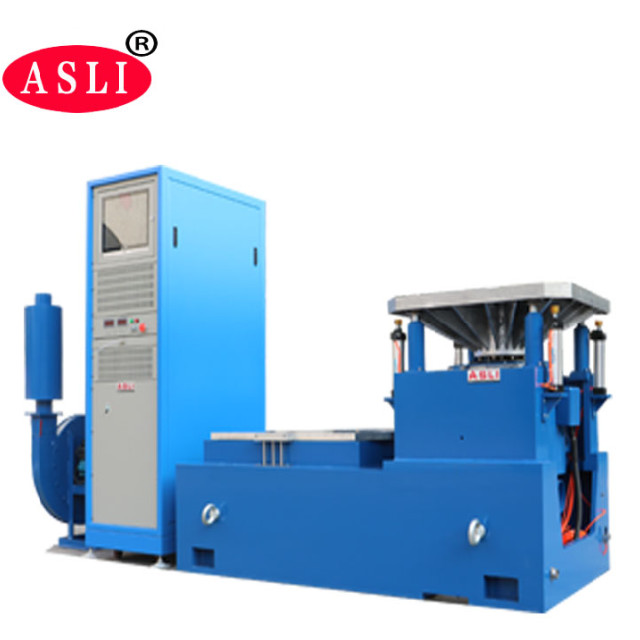

The Laboratory Electronic 600kg.f Vibration Shaker Table (Model ES-3) is a high-frequency electrodynamic vibration testing system designed for educational, research, and laboratory environments. It is widely used for testing lithium-ion battery packs and other critical components.
This vibration shaker table employs a double-magnetic circuit structure, self-generated skeleton action circles, airborne support, roller bearings, linear guidance, and trunnion isolation technology. It performs X, Y, and Z three-axis sinusoidal vibration tests, broadband random vibration tests, and classical pulse tests (half-sine, trapezoidal, sawtooth wave) as well as shock response spectrum tests.
These systems are widely applied in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, and home appliances industries.
| Model | ES-3 |
| Sine Thrust | 300 kgf |
| Random Thrust | 300 kgf |
| Impact Thrust | 600 kgf |
| Frequency Range | 2 ~ 2500 Hz |
| Continued Displacement | 25 mm |
| Impact Displacement | 25 mm |
| Maximum Speed | 1.8 m/s |
| Maximum Acceleration | 981 m/s² |
| Moving Coil Diameter | Φ150 mm |
| Allow Eccentric Moment | >196 N·m |
| Load Connection Point | 6 point |
| Equivalent Mass of Moving Parts | 3 kg |
| Countertops Screw Size (Standard) | M8 |
| Screw Layout Table (Diameter, Circumference) | 8 on Φ100 mm, 8 on Φ200 mm |
| Axial Isolation Frequency | <3 Hz |
| Maximum Load | 120 kg |
| Magnetic Flux Leakage | <1 mT |
| Dimensions (Without Packaging) (L×W×H) | 730 mm × 550 mm × 650 mm |
| Vibration Table Weight | 450 kg |

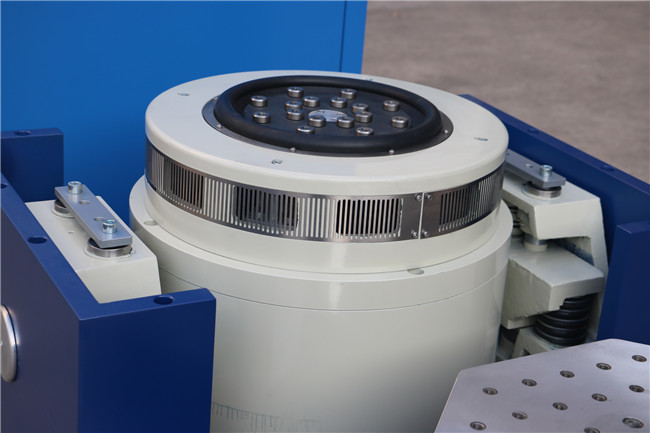

- Well-designed dynamic circle skeleton with a higher stage axial resonance frequency.
- Two-magnetic circuit design ensures low magnetic flux leakage, compact structure, and rational layout.
- Rocker rod roller bearings with straight and import-oriented composite body stiffness orientation for high eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, with convenient mobile installation.
- Advanced technology move-around system ensures high reliability of the dynamic circle.
- New duct design enhances the cooling effect.
- Static stiffness and dynamic stiffness of the bearing small balloon raise the vibration table bearing capacity and improve low-frequency performance.

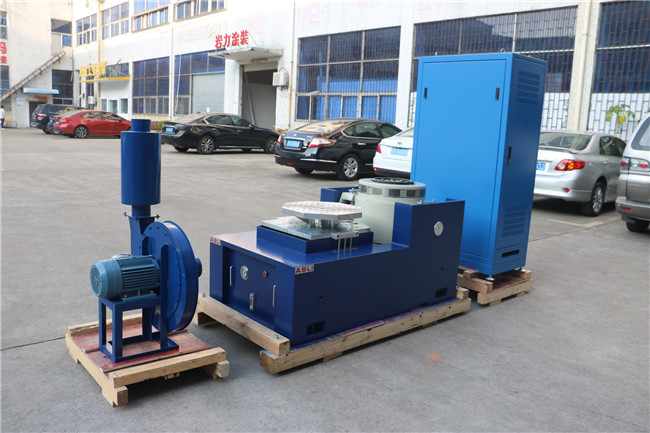

The High Frequency Electromagnetic Vibration Test Machine consists of the following components:
- Vibration test bench

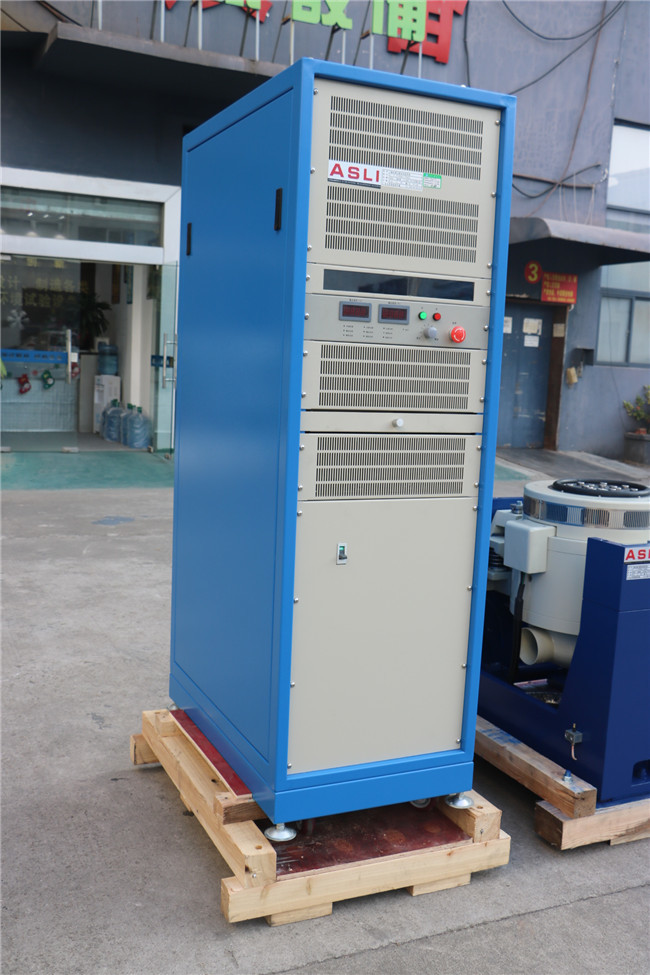

- Power amplifier
- Cooling fan

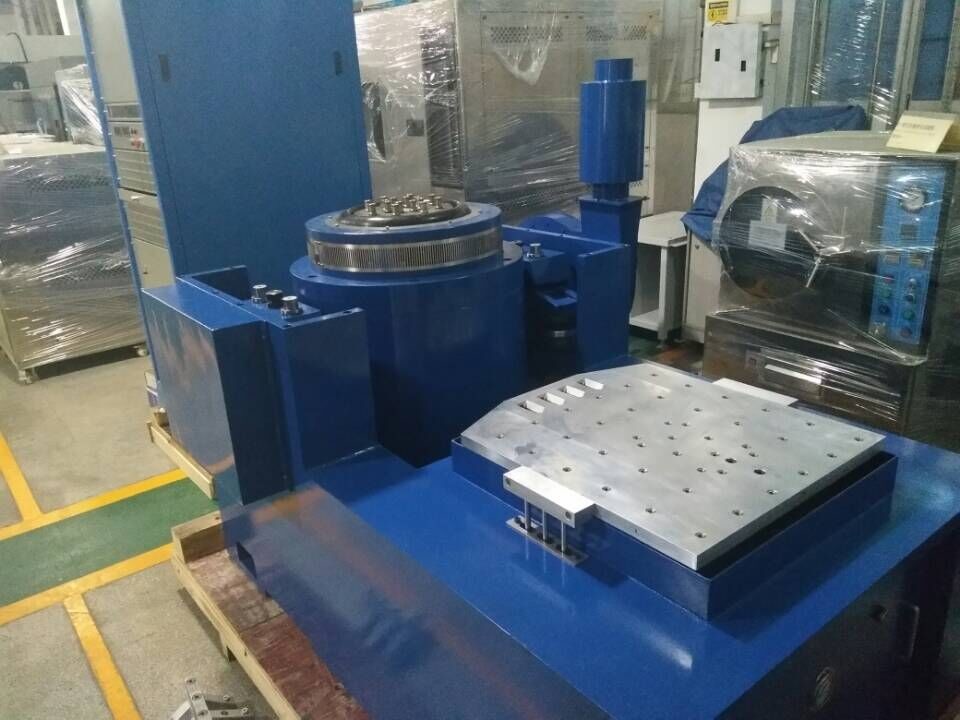

- Slip table
- Vertical expander
- Within small loading bench to realize higher acceleration and working frequency, improving the loading capacity and performance of the whole machine bench.
- Horizontal bench and vibration bench are integral type, with perfect structure and convenience to install and adjust.
- Static pressure track, V-shape, with capacity of slope-resistant and bias-loading resistant.
- Built-in oil pump, good structure and easy operating.
The VT vertical extended-bench and specified clamps are precision calculated and elaborately designed to ensure the customer acquires the best performance according to perfect specifications.
Product Highlights
ASLI 600kg.f vibration shaker table, IEC standard, 3-axis, 2-2500Hz, 120kg load. ISO 9001:2008 certified, OEM/customizable, durable, efficient, ideal for lab and industrial testing.
