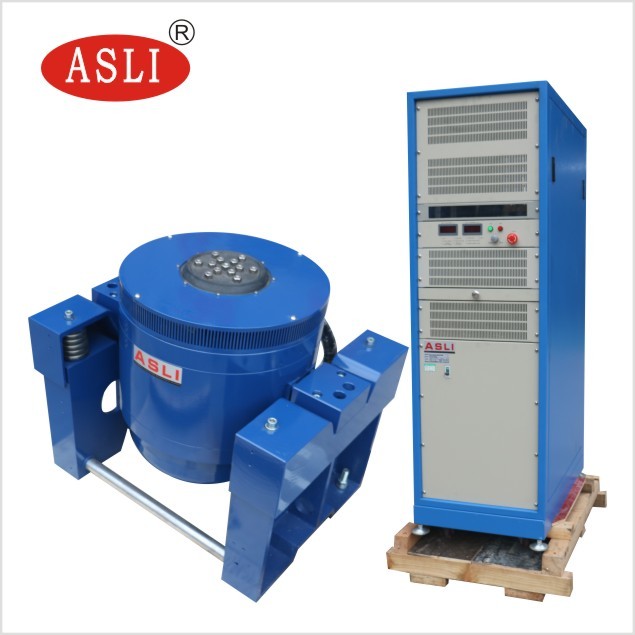

ISTA 2A 3A 6KN Electrodynamic Vibration Shaker With Vibration Controller
Product Details
| Vibration Force: | 6000N | Application: | Package |
|---|---|---|---|
| Vibration Direction: | Vertical Vibration | Test Standard: | Ista 2a 3a |
| Frequency: | 3~3500hz | Acceleration: | 100g |
| Highlight |
ISTA 2A Electrodynamic Vibration Shaker,6KN Electrodynamic Vibration Shaker,ISTA 3A Electrodynamic Vibration Machine |
||
Product Description
ista 2a 3a test standards electrodynamic vibration shaker
* Fixed-frequency sinusoidal vibration
* Swept vibration
* Random vibration
* Classical shock
Download document for storage -- click here ----→ES-6 vibration test equipment.pdf
Features:
1. Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control systems, the data of the whole process can be handing and output.
2. Display functions: dynamic display test curves, multi-Dan, on the number of data.
3. Curve recorder:real-time record of the test data, test data automatically, the test results can be stored, printed.
Main Technical Parameters
User Benefits
* Easy installation can be done by user
* User interface: lcd touch screen for local mode and pc-windows (thru ethernet) for remote mode;
* Local mode: quick start a pre-defined test, dozens of test specifications can be stored;
* Remote mode: all operations of the system, including test defining and store the test specifications onto mostar, test control, test data review and documentation.
Vibration Shaker Table Manufacturer adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test.
1 The careful design of the moving coil skeleton, has higher first-order axial resonant frequency .
2 Light armature, high stiffness, 4500 Hz frequency.
3 Computer connecting line control, immediately store materials.
4 Display controlling chart.
5 Low resistance and high performance design, high efficiency, low cost.
6 High reliability, low fault.

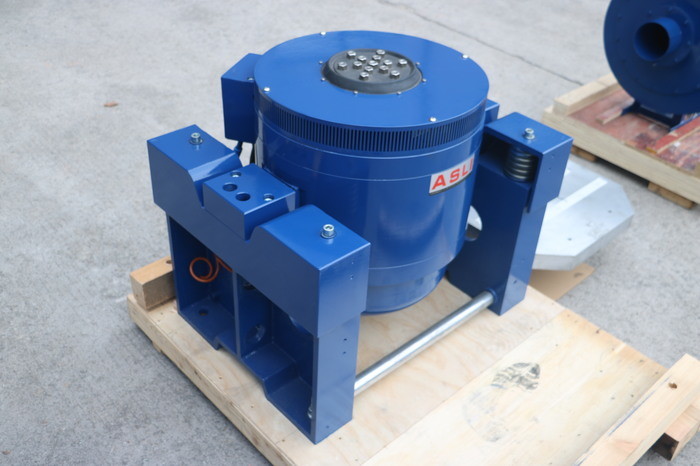

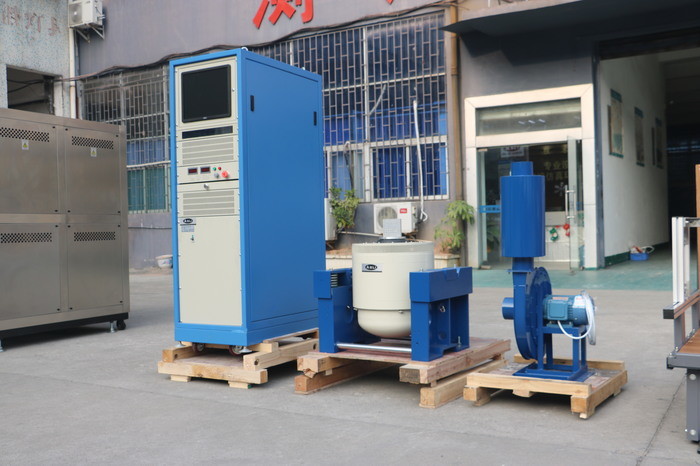

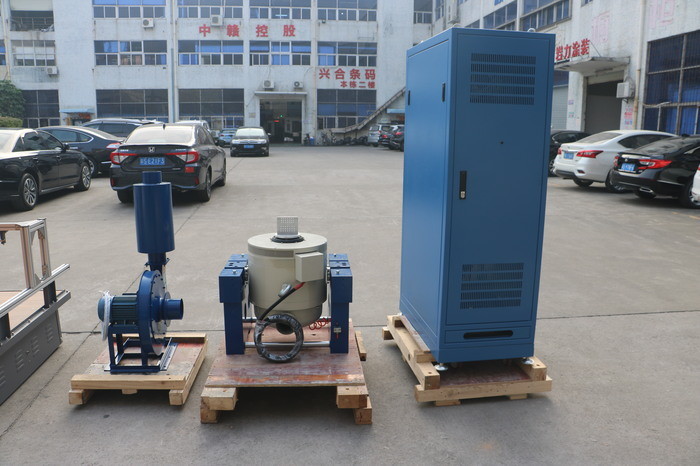

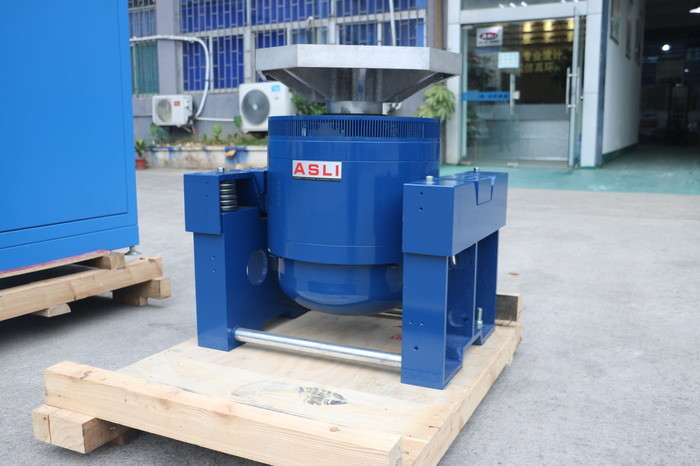

Pictures for reference:
