Application

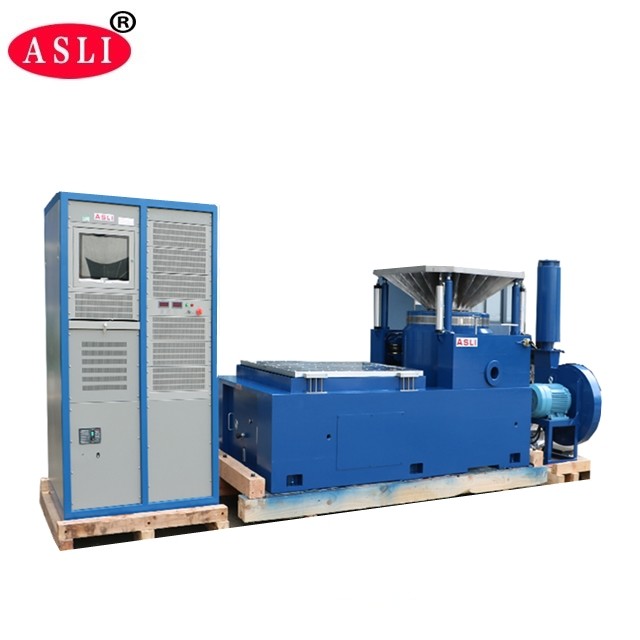

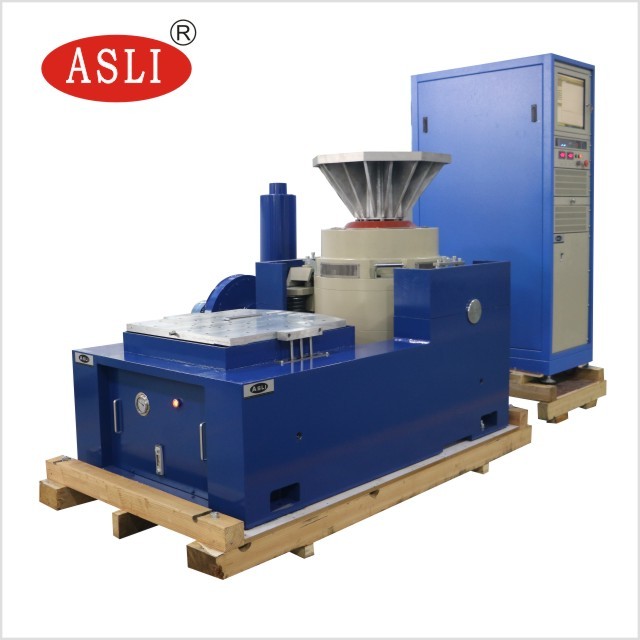

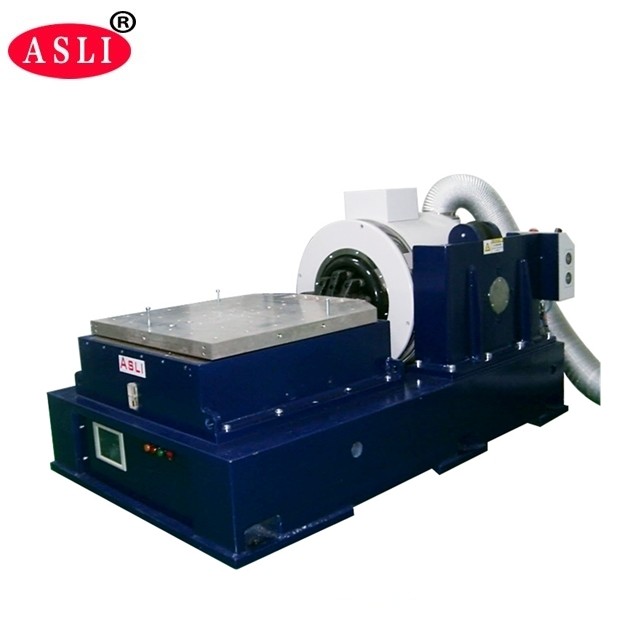

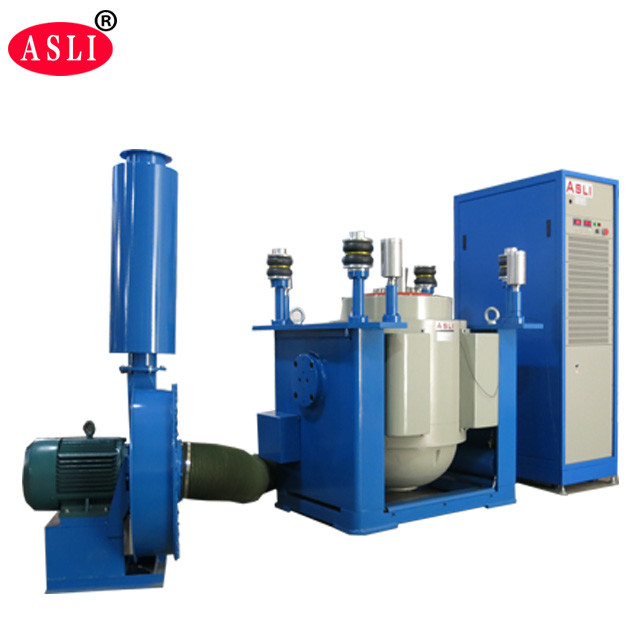

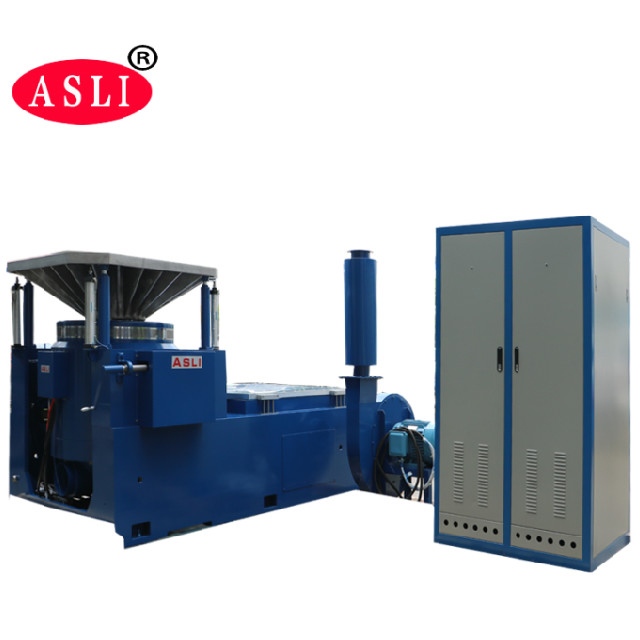

High Frequency Vibration Shaker adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.
(1) Rated Force: sine force 6000N; random force 6000N; shock force 12000N;
(2) Frequency Range: 5Hz to 3500Hz, Fixed frequency, sweep back and forth, sine, random, shock
(3) Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
(4) Sweep-frequency Times: 1 to 32767
(5) Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.
(6) Max. Acceleration 1000m/s2 (non load)
(7) Max Load 180Kg
(8) Max. Displacement: 25mm p-p (non load), double peak
(9) Impact Displacement: 25 mm
(10) Weight of Moving Coil: 6.5kg
(11) Vibration Directions: vertical
(12) Vibration Wave: sine, random, shock
(13) Diameter of the Moving Coil: Φ230 mm
(14) Vibration System Dimension(mm): W850xH750xD550mm
(15) Vibration System weight: 590kg
2-2 Vibration Components Details
(1) Vibration Generator 1 set
(2) Vibration Controller 1 set
(3) Communication Connection Chamber 1 set
(4) DA-6 Power Amplifier 1 set
(5) Driver Software 1 set
(7) Driver Software 1 set
(8) Cooling System 1 set
(9) Industrial Computer 1 set
Technical Parameters:
| Name | Packing Vibration Table/Vibration Table Tester for Auto Parts | ||||||||
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil (mm) |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
