300kg Load 6KN Vibration Table Testing Equipment For Car Parts

1 set
MOQ
negotiable
Price
300kg Load 6KN Vibration Table Testing Equipment For Car Parts
Features Gallery Product Description Request A Quote
Features
Specifications
Vibration Force: 6KN
Frequency: 5-3500hz
Displacement: 51mm
Vibration Direction: Vertical And Horizontal
Test Standard: MIL STD 810F
Application: Communications, Electronics
High Light:

6KN Vibration Table Testing Equipment

,

300kg Load Vibration Table Testing Equipment

,

6KN Vibration Testing Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: ASLI
Certification: CE, ISO, SGS
Model Number: ES-6
Payment & Shipping Terms
Packaging Details: strongly wooden case
Delivery Time: 30~45 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per quarter
Product Description

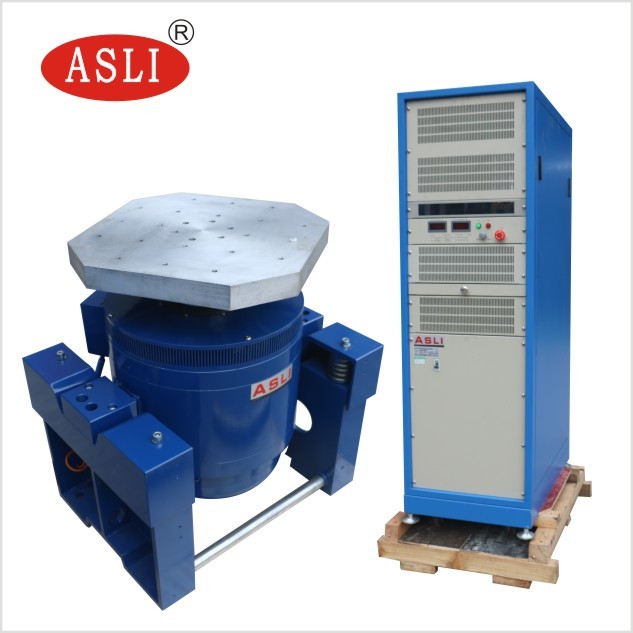

                             Vertical and Horizontal Vibration Table Testing Equipment for Car Parts Testing





Test standard:



Comply with JIS, UL, DIN, ISO, BS, MIL, IEC, ASTM and other related test standard.





Vertical and Horizontal Vibration Table Testing Equipment for Car Parts Testing Application

Vibration test machine/vibration shaker, which high frequency vibration test standard is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products.



SPECIFICATIONS
Sine thrust
600kgf
Randon thrust
600kgf
Shock thrust
600kgf
Frequency range
5~3500Hz
Continued displacement
51mm
Shock displacement
40mm
Maximum acceleration
980m/s2 (100g)
Moving coil diameter
Φ220mm
Max. load
300kg
Fist-order resonance frequency
2500Hz
Tolerant eccentric torque
>390N.m
Load connection point
16 connection point
Equivalent quality of moving parts
10kg



300kg Load 6KN Vibration Table Testing Equipment For Car Parts 0300kg Load 6KN Vibration Table Testing Equipment For Car Parts 1300kg Load 6KN Vibration Table Testing Equipment For Car Parts 2



Features:



1. Set way: Chinese and English menu, computer operation, the use of specialized monitoring and control systems, the data of the whole process can be handing and output.

2. Display functions: dynamic display test curves, multi-Dan, on the number of data.

3. Curve recorder:real-time record of the test data, test data automatically, the test results can be stored, printed.
