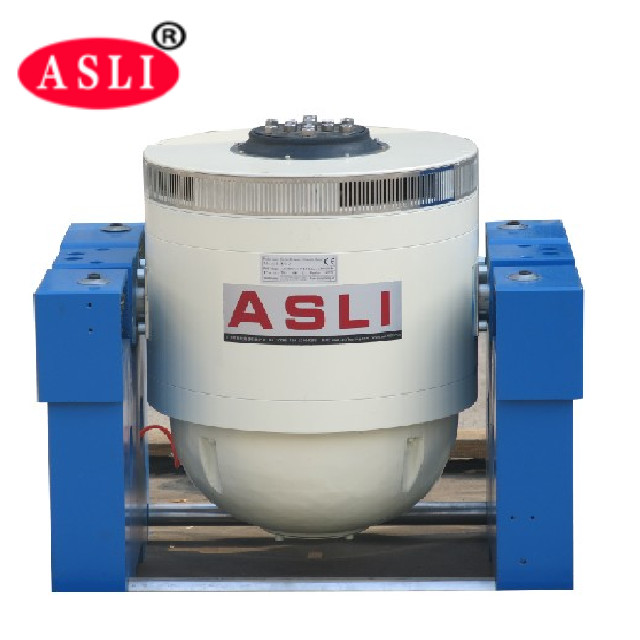

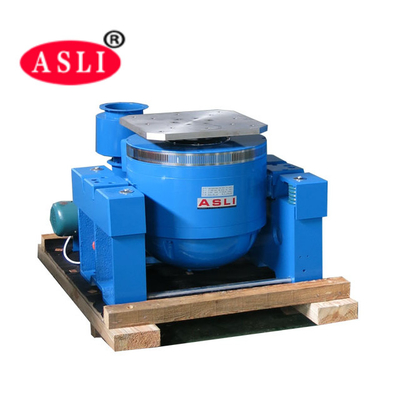

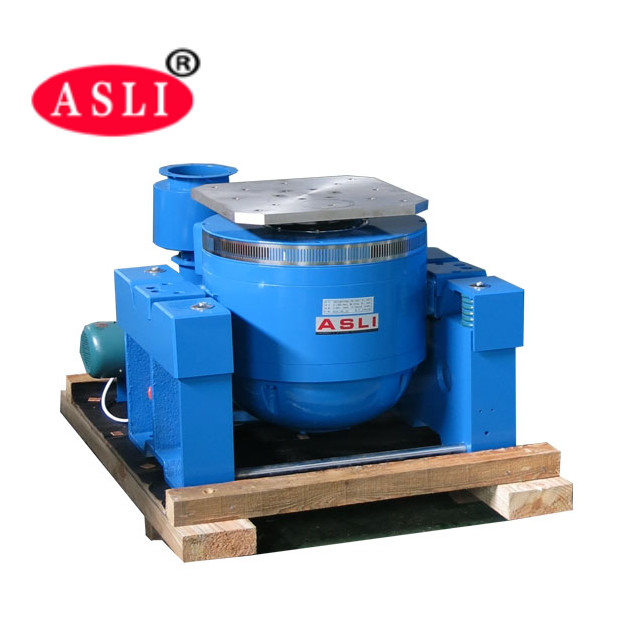

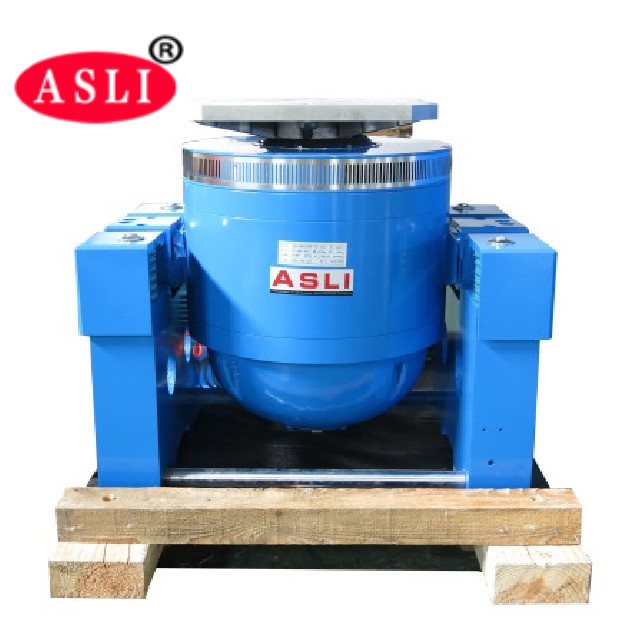

EN 60068-2-64 Electrodynamic Vibration Shaker Machine
Product Details
| Sine Force: | 40000N | Speed: | 1.8 M/s |
|---|---|---|---|
| Displacement: | 65mm | Frequency: | 3~3500HZ |
| Loading: | 500kg | Acceleration: | 100g |
| Armature: | 450mm | Brand: | ASLI |
| Table Size: | 600x600mm | ||
| Highlight |
Electrodynamic Vibration Shaker Machine,EN 60068-2-64 Vibration Shaker Machine,EN 60068-2-64 Vibration Testing Machine |
||
Product Description
The EN 60068-2-64 Electrodynamic Vibration Shaker Machine is a high-frequency vibration test bench designed for rigorous environmental simulation. It is widely used for automotive battery testing, IEC 62133, UN38.3, and EN50604 compliance, delivering precise and reliable vibration profiles for laboratory and industrial applications.

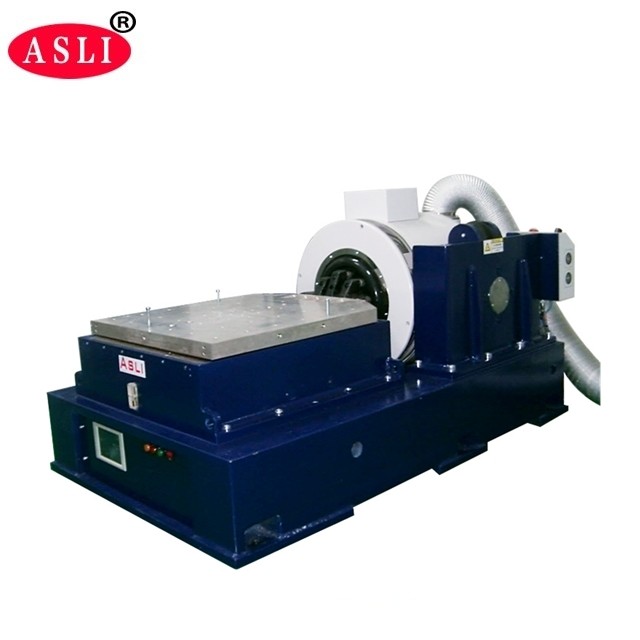

- One-piece horizontal vibration generator
- Vertical expansion table
- Cooling fan with muffler

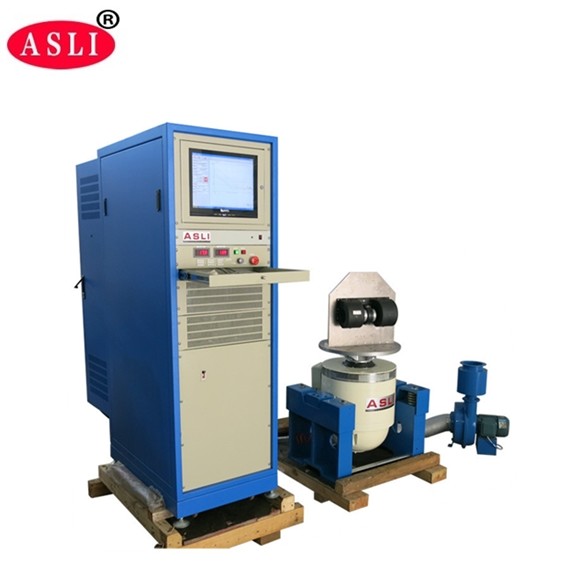

- Digital switching power amplifier
- Multi-function vibration control measuring instrument
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3–2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
- Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
- Advanced technology move around the system to ensure that the dynamic circle of high reliability.
- New duct design and enhance the cooling effect.
- Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
