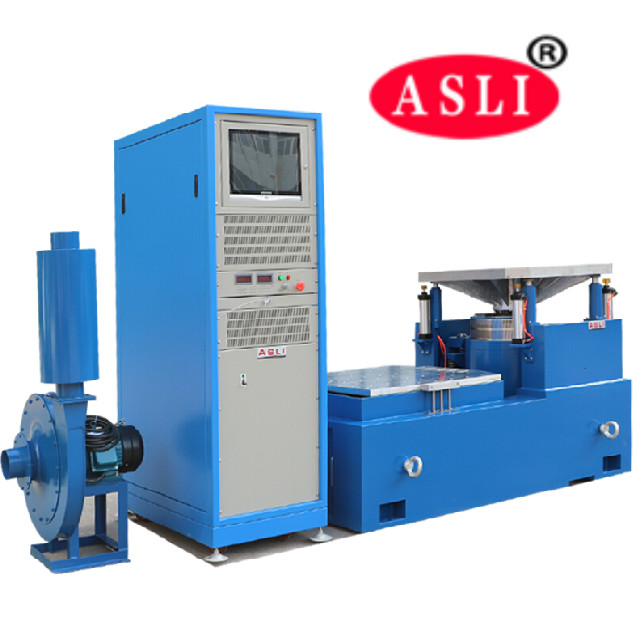

3 - 3000Hz 20000N Electromagnetic Vibration Test Equipment For Electronics Parts
Product Details
| Vibration Direction: | Xyz Axis | Vibration Wave: | Random Sine |
|---|---|---|---|
| Displacement: | 51mm | Table Size: | 800*800mm |
| Application: | Electronics Parts | Power: | AC380V 3 Phase 5 Lines |
| Highlight |
3000Hz Vibration Test Equipment,3Hz Vibration Test Equipment,20000N Electrodynamic Vibration Shaker |
||
Product Description
high frequency electromagnetic vibration test equipment for electronics parts
What Is a Vibration Test?
Products are shipped all over the world on a daily basis in packages and shipping containers. Vehicles, ships, or aircraft may transport them, but in any mode, they are exposed to vibration. A vibration test is often used as a quality control tool to expose products to vibration prior to shipping. The results can be used for product and packaging design to reduce damage from shaking and bouncing. Vibration testing is also used for field monitoring of pumps and motors.
Download document for storage -- click here ----→vibration test equipment ES-20.pdf
high frequency electromagnetic vibration test equipment for electronics parts technical parameters:
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |

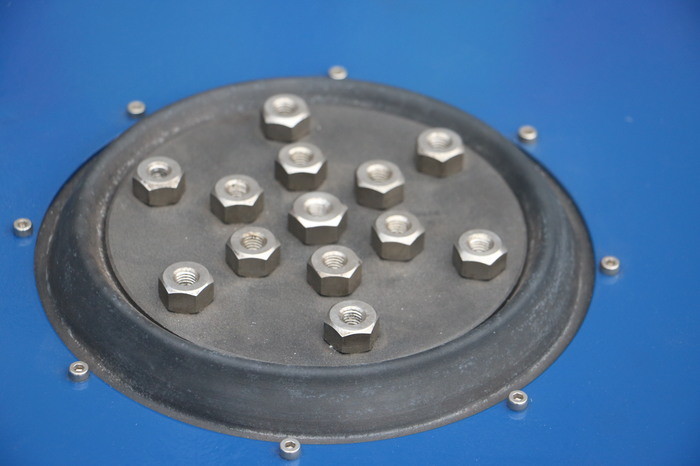

Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |

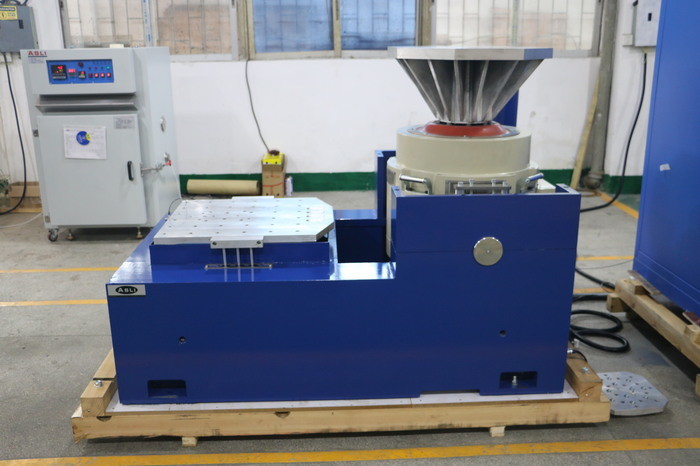

technical parameters of horizontal expander:
| Model | Bench Size (mm) | Frequency Range (Hz) | Weight of Moving Parts (kg) |
| LT0303 | 300×300×22 300×300×26 300×300×30 |
5-1000 5-1500 5-2000 |
6.6 7.8 9.0 |
| LT0404 | 400×400×22 400×400×26 400×400×30 |
5-l000 5-1400 5-2000 |
11.2 13.2 16.0 |
| LT0505 | 500×500×25 500×500×30 500×500×35 |
5-1000 5-1500 5-2000 |
19.3 23.1 27.0 |
technical parameters of vertical expander:
| Model | Weight (kg) | Max. Frequency (Hz) | Bench Size |
| VT300 | 10 | 2000 | Φ300 |
| VT400 | 16 | 2000 | Φ400 |
| VT500 | 25 | 1500 | Φ500 |
| VT600 | 35 | 1000 | Φ600 |
| VT0303 | 15 | 2000 | 300×300 |
| VT0404 | 22 | 1500 | 400×400 |
| VT0505 | 30 | 500 | 500×500 |
| VT0606 | 58 | 350 | 600×600 |
| VT0808 | 140 | 350 | 800×800 |
| VTl010 | 180 | 350 | 1000×1000 |
MULTI-MODE REGULATION
Sine,random,resonant search and dwell , typical impact and road simulation modes .
STRONGE CARRYING CAPACITY
the central load airbag has large static stiffness ,small dynamic rigidity ,strong carry capacity and good effect when the amplitudes changes .
INTERFERENCE CONTROL
Double magnetic design flux leakage and the magnetic field is uniformly solved to strong electromagnetic field control circuit interference
Besides vibration tester, our product range also covers:
(1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in stability, Thermal shock test chamber, Temperature Humidity UV test chamber, Ramp rate temperature chamber.
(2) Aging test series: High Temperature oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone test chamber, Burn in test equipment
(3) Weather simulation test series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV resistance test chamber
(4) Mechanical test series: Vibration test machine, Drop test machine , Bump Test Machine, Acceleration mechanical shock tester etc.
