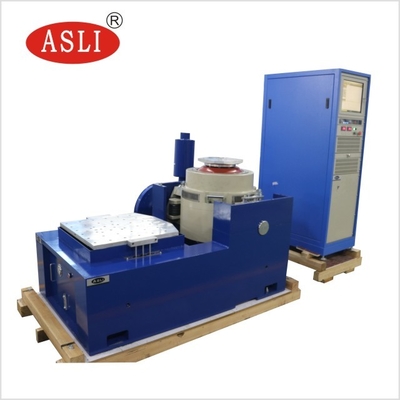

Vertical Horizontal Electrodynamics Type Vibration Tester Best Sell
Product Details
| Vibration Force: | 30KN | Max. Acceleration: | 100g |
|---|---|---|---|
| Test Standard: | IEC62133 | Vibration Direction: | Horizontal And Vertical Vibration |
| Max. Dispacement: | 51 Mm | The Weight Of Moving Coil: | 40kg |
| Highlight |
Vertical Vibration Tester,Horizontal Vibration Tester,30KN Vibration Shaker Table |
||
Product Description
High Frequency Vibration Test Stand ES-30.pdf
What's the best Best Sell Vertical + Horizontal Electrodynamics Type Vibration Tester?
vibration test machine are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the disribution or in-use environment. The machine are simple to use can perform a wide range of vibration test in accordance with government,industry and corporated specifications.
| Shaker | |
| Sine force (peak) | 30kN |
| Shock force (peak) | 60 kN |
| 3Frequency range | 5~2800 Hz |
| Displacement (continuous) | 51 mm |
| Max. Velocity | 1.8 m/s |
| Max. Acceleration | 100 G |
| Armature Diameter | 445 mm |
| 1st order resonant frequency | 2,400 Hz |
| Allowable eccentric moment | >500 Nxm |
| Armature weight | 40 kg |
| HE/ST screw dimension | M10 (metric) |
| Axial vibration isolation frequency | <3 Hz |
| Max. Payload | 500 kg |
| Magnetic flux leakage | ≤1 mT |
| Dimensions (L×W×H, unpacked) | 1,330x860x1,250 mm |
| Weight (unpacked) | 2,500 kg |
| Installation | Rubber mat (anchor bolts required) |
| Power Amplifier | |
| Amplifier output | 30 kVA |
| SNR | >65 dB |
| Rated output voltage | 120 Vrms |
| Dimensions (L×W×H, unpacked) | 800x900x2,100 mm |
| Cooling Fan | |
| Air volume | 0.46 m3/s |
| Power | 7.5 kW |
| Air duct diameter | 200 mm |
| Air pressure | 8.8kPa |
| Installation |
Able to connect to ceiling (up to two 90 degree bends), max 20’ run |
Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test.
Electromagnetic vibration tester completely according to the standard design battery related testing, simulation, under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.
Vibration test of the application scope is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.
Test standard:
GB/T 31486-2015 <Electrical performance requirements and test methods for traction battery of electric vehicle> Test requirements
UL 1642:2012 < Standard for Lithium batteries>
UL 2054: 2012 < Household and Commercial Batteries>
UN38.3(2012) <Part 3: proposal for dangerous goods transport - test and standard manual>
IEC62133-2:2017 < Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications-Parts 2: Lithium systems>
IEC 62281: 2004 <The safety requirements in transport of Lithium battery and battery>
IEC 60068: 2007 <Galvanic cell part 4 the security requirements of lithium-ion batteries>
Characteristics:
Ultra mute work; The machine base uses the high quality material, installs conveniently, the operation is smooth, does not need to install the The, the control circuit digitization control and the display frequency, the PID adjusts the function, causes the equipment work to be more stable, reliable, sweeps the frequency and the fixed frequency operation way, adapts to the different profession test request To solve the interference of the strong electromagnetic field to the control circuit, and to increase the working time set, so that the test product reaches the accurate test time..
if you need more information about Best Sell Vertical + Horizontal Electrodynamics Type Vibration Tester, contact us anytime.
