PRODUCT DESCRIPTION
The high frequency vibration test system is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.
According to the requirement, it can provide users with comprehensive test equipment in multiple environments such as climate and mechanics.
Random Sine Electro-dynamic Vibration Mechanical Shaker Table for LED Luminaire can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid, trapezoid, back peak saw tooth) pulse and shock response spectrum test.The comprehensive test of mechanics and environment conditions can be carried out with a climate chamber.
TECHNICAL PARAMETERS OF VIBRATION SYSTEM
| Item | Description | |
|
Force (Maximum) |
Sine | 600Kg.f peak |
| Random | 600Kg.f r.ms | |
| Shock | 600Kg.f peak | |
| Frequency Range | 5~2500 Hz | |
| Max. Displacement | (Peak to Peak) 51mm | |
| Max. Velocity | 1.8m/s | |
| Max. Acceleration | 100G (980 m/s2) without loading | |
| Vibration direction | Vertical and horizontal | |
| Armature Diameter | 200 mm | |
| Effective Armature Mass | 6kg | |
| Table screw | 17×M10 | |
| Max. payload | 300kg | |
| Magnetic Leakage | <10gauss | |
| Axial Vibration Isolation Frequency | 2.5HZ | |
| Allowable eccentric moment | >300N.m | |
| Dimension | 1200mm*790mm*840mm (Head Expander is excluded) | |
| Weight | 1600kg (Slip Table is excluded) | |
| Power supply | AC 3-phase 380V/50Hz,18 KVA | |
| Grounding resistance | ≤4Ω | |
| Air compressor | 0.4-0.6Mpa (provided by customer) | |
| Cooling method | Air cooling | |
Features
Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
Quick self-diagnosis with safety interlock, high safety reliability;
Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
Provide horizontal and vertical expansion platform for different application;
Simple controller operation.

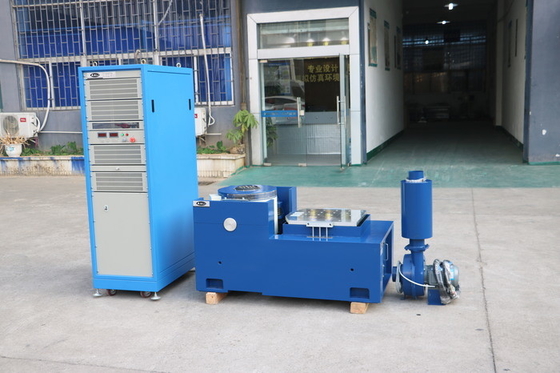

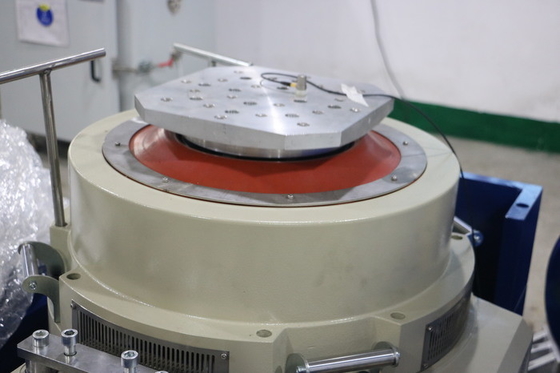

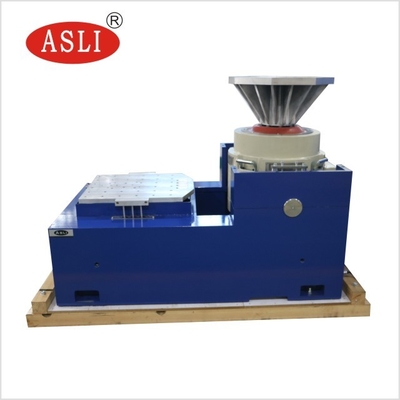

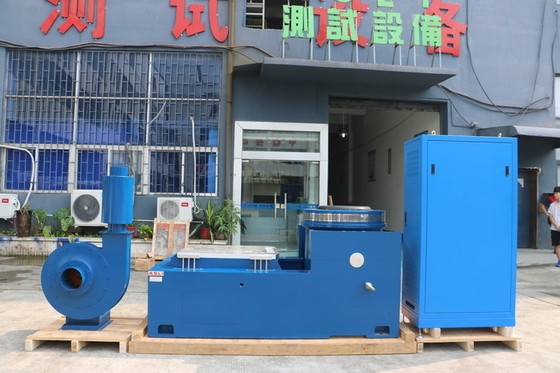

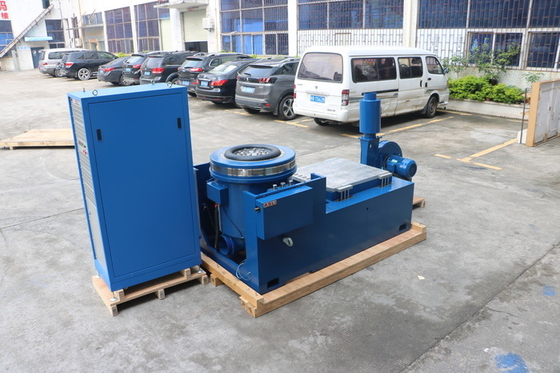

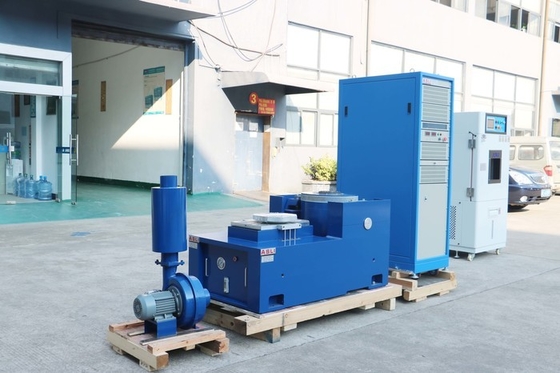

Transport Simulation High Frequency Type Vibration Tester for LED Luminaire Pictures for reference:
Any doubt or needs about Transport Simulation High Frequency Type Vibration Tester for LED Luminaire, please don't hesitate to send your inquiry.
