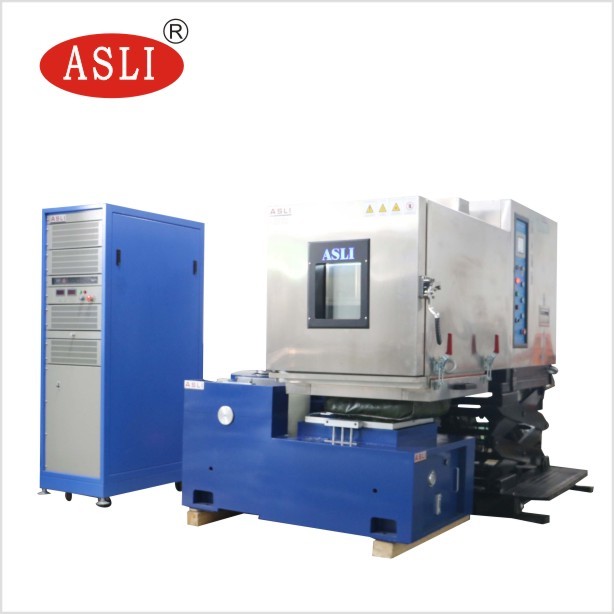

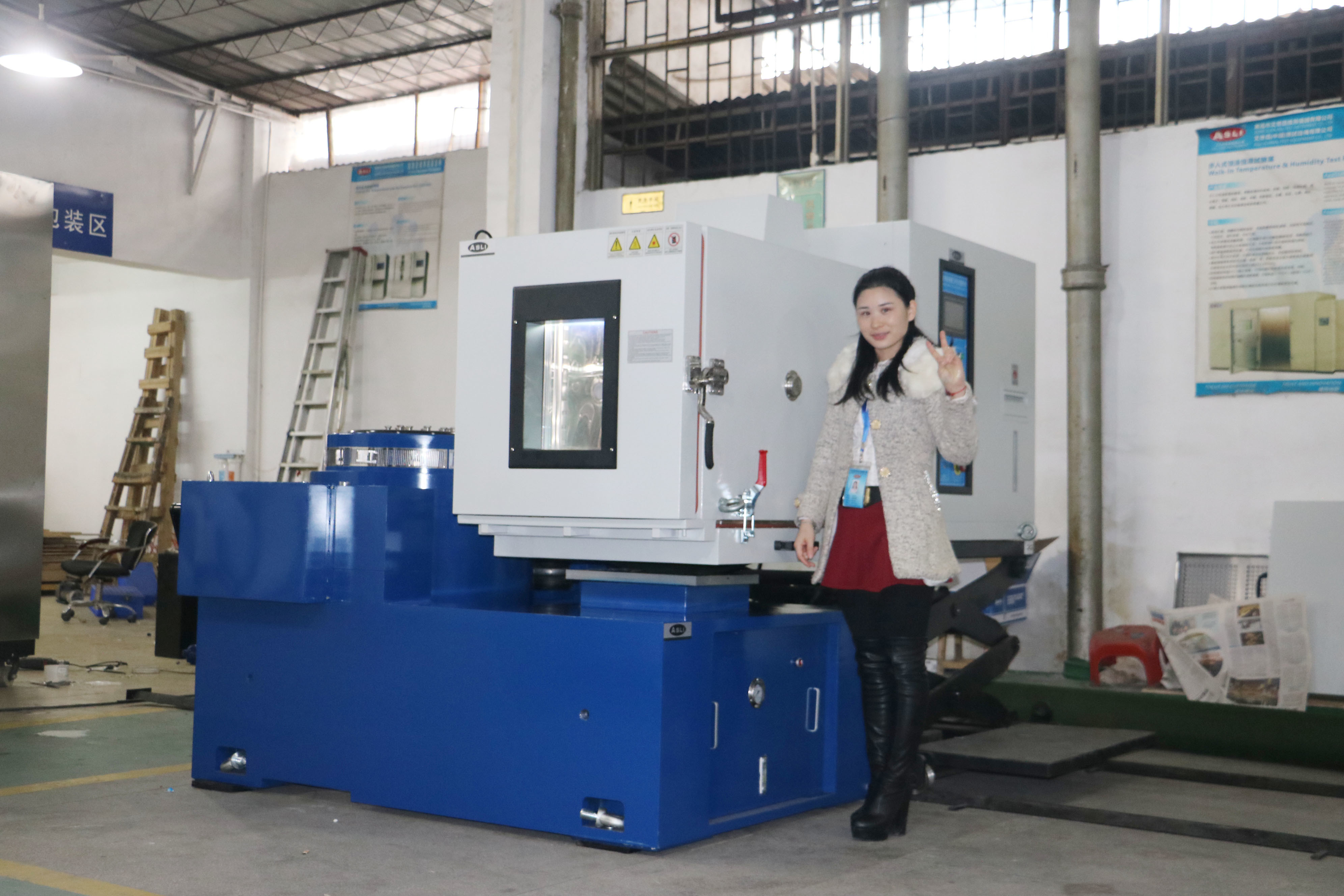

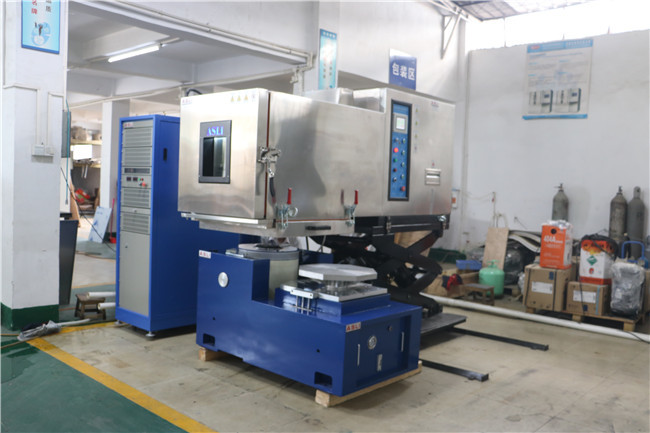

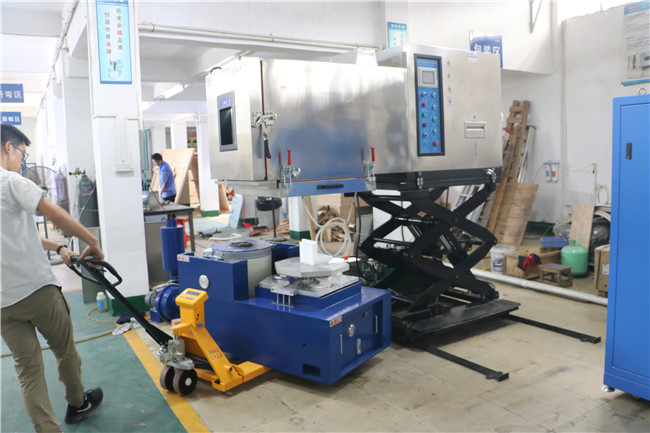

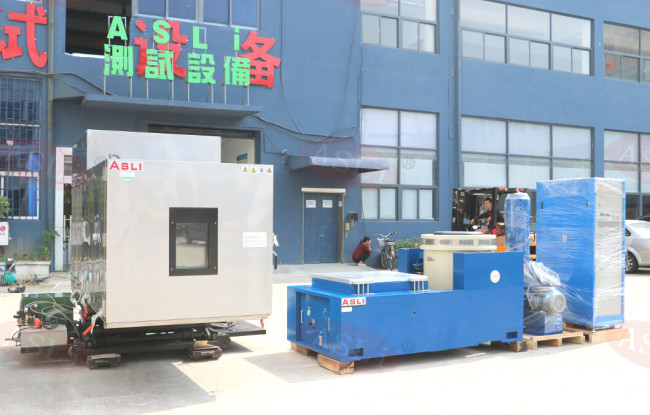

Large Force Temperature Humidity Vibration Testing Machine 3 Axis
Product Details
| Test Zone: | 1000L | Temperature Range: | -40~+150degree |
|---|---|---|---|
| Humidity Range: | 20~98% | Skaker: | Vibration Shaker |
| Vibration Mode: | Sine, Random, Shock | Vibration Direction: | X.y.z |
| Waranty: | Life Time Waranty Avaible | ||
| Highlight |
THV Vibration Testing Machine,1000hz Vibration Testing Machine,1000L High Frequency Vibration Shaker |
||
Product Description
What is vibration testing?
In the environmental laboratory, vibration testing is per· formed as part of a company's quality assurance pro- gramme together with for example temperature and hu- midity tests to ensure product reliability.
Vibration Test Systems are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the distribution or in-use environment.
Download document for storage -- click here ----→vibration temperature test machine THV-Volume.pdf
|
Name
|
3 axis large force temperature humidity vibration testing machine -Environmental Chamber
|
||
|
Model
|
THV-408(A~F)
|
THV-1000(A~F)
|
THV-1500(A~F)
|
|
Internal Dimension WxHxD(mm)
|
600x850x800
|
1000x1000x1000
|
1500x1500x1500
|
|
External dimension WxHxD (mm)
|
850x1950x2100
|
1300x2200x2400
|
1800x2400x3000
|
|
Temperature Range
|
Low temperature: (A:25ºC; B:0ºC; C:-20ºC; D: -40ºC; E: -60ºC; F:-70ºC)
High temperature:100ºC(150ºC)
|
||
|
Humidity Range
|
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H. is a special optional condition, need Dehumidifier)
|
||
|
Control Accuracy of temperature and humidity
|
±0.5ºC; ±2.5% R.H.
|
||
|
Temperature Rising / Falling Velocity
|
Temperature rising approx. 0.1~3.0ºC/min ;
temperature falling approx. 0.1~1.2ºC/min; (Falling velocity Min.1.5ºC/min is optional) |
||
|
Protection Devices
|
Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
|
||
|

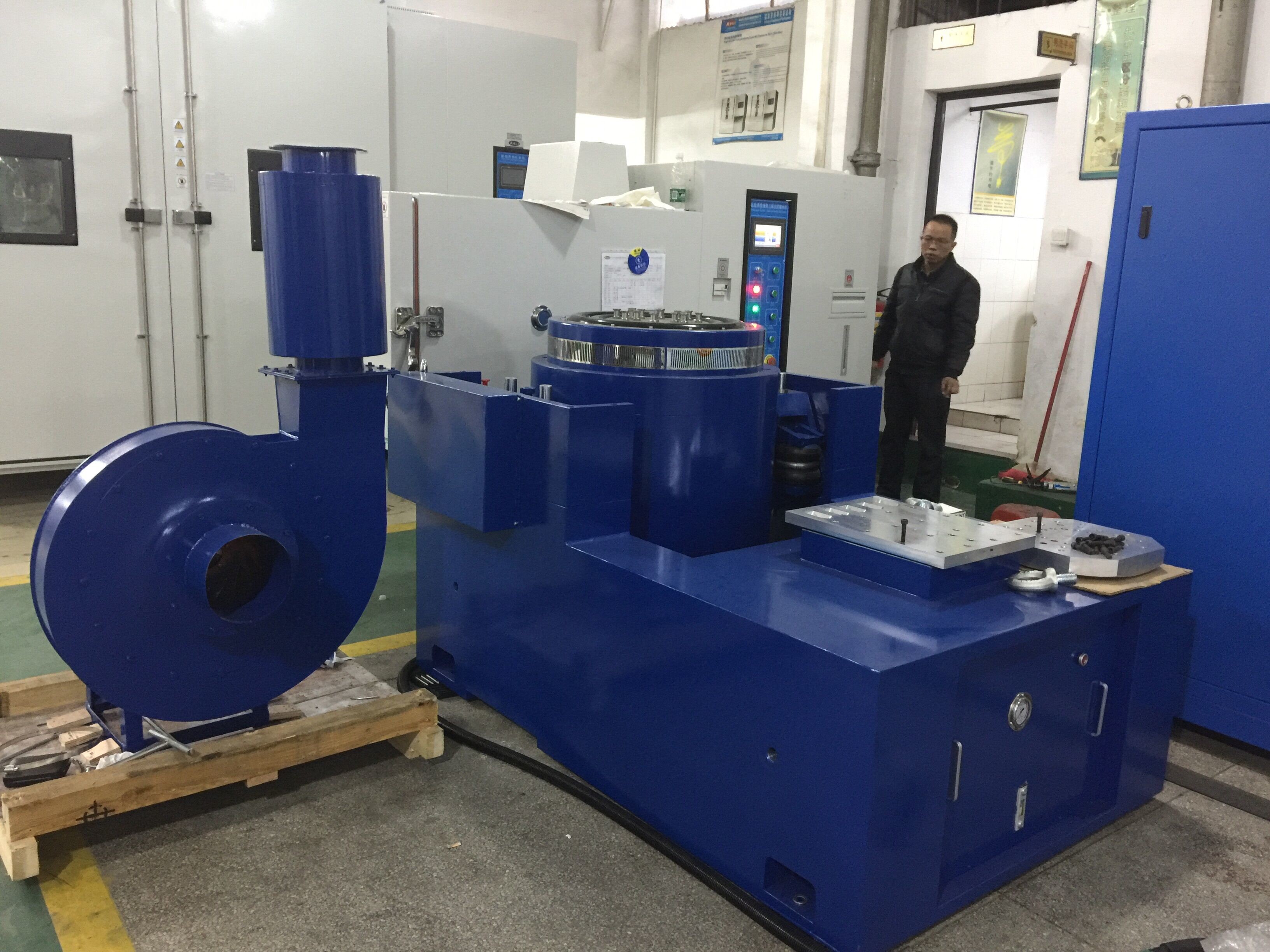

Vibration Test Equipment
|
Choose proper vibration test bench according to customer's test condition, the technical parameters please take Electrodynamics Type Vibration Tester's parameters in this catalog for reference
|
||
|
Model
|
ES-3
|
ES-3a
|
ES-6
|
ES-6a
|
ES-10
|
ES-20
|
ES-30
|
ES-40
|
ES-50
|
|
Rated Sine Force (N)
|
3000
|
3000
|
6000
|
6000
|
10000
|
20000
|
30000
|
40000
|
50000
|
|
Rated Random
|
3000
|
3000
|
6000
|
6000
|
10000
|
20000
|
30000
|
40000
|
50000
|
|
Force (N)
|
3-3500
|
3-3500
|
3-3500
|
3-3500
|
3-3000
|
3-3000
|
3-2800
|
3-2800
|
3-2700
|
|
Frequency Range (Hz)
|
1000
|
400
|
1000
|
1000
|
1000 |
1000
|
1000
|
1000
|
1000
|
|
Rated Acceleration (m/s2)
|
1.6
|
1.6
|
1.6
|
1.6
|
1.8
|
1.8
|
1.8
|
1.8
|
1.8
|
|
Rated Speed (m/s)
|
25
|
40
|
25
|
51
|
51
|
51
|
5l
|
51
|
51
|
|
Rated displacement (p-p) mm
|
100
|
120
|
180
|
250
|
270
|
300
|
450
|
500
|
750
|
|
Max. Loading (Kg)
|
3.5
|
9
|
6.5
|
12
|
14
|
30
|
40
|
50
|
50
|
|
moving coil (Kg)
|
Φ150
|
Φ230
|
Φ230
|
Φ230
|
Φ240
|
Φ320
|
Φ450
|
Φ450
|
Φ450
|
