IEC 60095-7 Vertical Vibration High Frequency Vibration Tester for Motorcycle Batteries
How does vibration testing help?
Vibration testing is done by replicating conditions (under a test environment) that a product, machine or structure might go through or see in its lifetime, including conditions during transit as well as operations. Hence, vibration testing pre-empts performance issues and potential failures even before they start or occur.
Also, In production-intensive industries like Oil & Gas, Power Generation, Metals & Mining, etc., failure or downtime of any machinery or device leads to loss of efficiency & higher production costs and an unsafe working environment too. Hence, these industries need continuous and regular vibration testing.
Download document for storage -- click here ----→ES-3A vibration tester.pdf
For DO-160 Industrial Electrical Appliances Electrodynamics Type Vibration Tester Please prepared for below and send your inquiry, We will help torecommond you suitable model
Specimen Description
Specimen Test Mass
Specimen Dimensions
Test profile if available
Max acceleration of test
X,Y,Z direction test or only Z direction test
Model specification in display
| System Specification | |||
| System Model: | ES-10 | ||
| Frequency Range: | 3~3500 | ||
| Rated Force | Sine N | 10000 | |
| Random N | 20000 | ||
| Shock N | 20000 | ||
| Maximum Acc. | sine (m/s2) | 1000 | |
| Random (m/s2 rms) | 1000 | ||
| Shock(m/s2) | 2000 | ||
| Maximum Vel. | sine (m/s2) | 1.8 | |
| Shock(m/s2) | 1.8 | ||
| Maximum Disp. | Maximum Travel mm (p-p) |
51 | |
| Moving Coil | 12kgs | ||
| Dimension of moving coil | Dia 240mm | ||
| Max Load: | 270kgs | ||
Other availabel vibration shaker selections
| Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
Features:
1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.

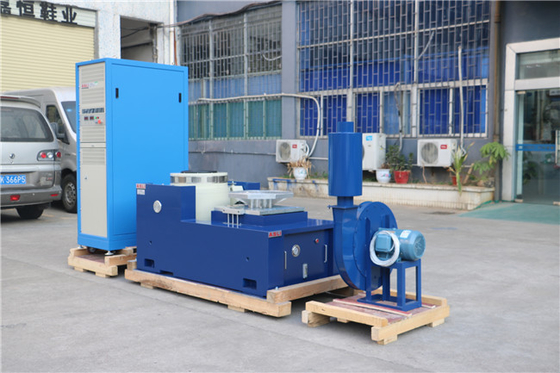

Vertical test table

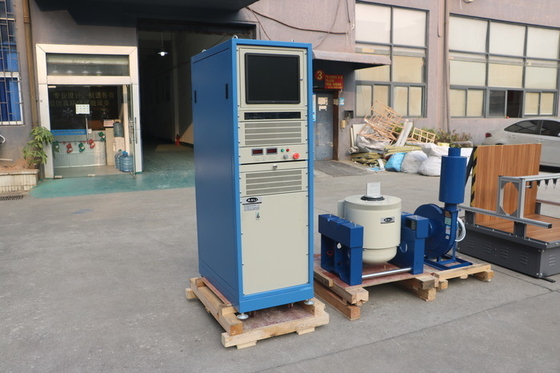

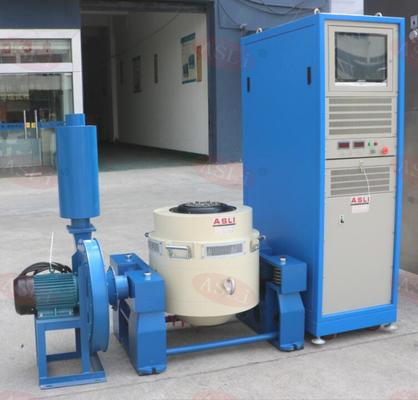

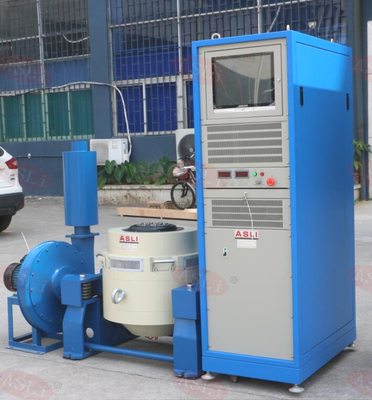

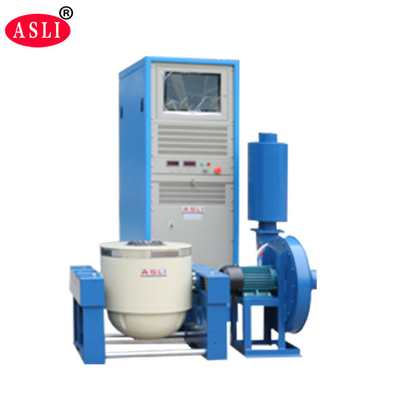

Pics for reference:
More reference:

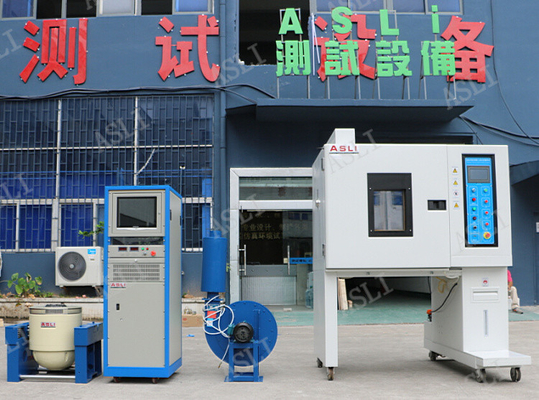

Our IEC 60095-7 Vertical Vibration High Frequency Vibration Tester for Motorcycle Batteries also can be combined with climatic chamber:
Welome to contact us!
