Electrodynamics High Frequency Sine and Random Shock Vibration Shaker Table
Product Details
| Vibration Force: | 10KN | Displacement: | 51mm |
|---|---|---|---|
| Speed: | 1.8m/s | Max Load: | 270kg |
| Application: | Packaging | Mode: | Electrodynamic |
| Function: | Sine And Random | Frequency: | 5~2000hz |
| Highlight |
Vibration Shaker Table 2000hz,Packaging Electrodynamics Vibration Shaker Table,High Frequency Vibration Shaker 10000N |
||
Product Description

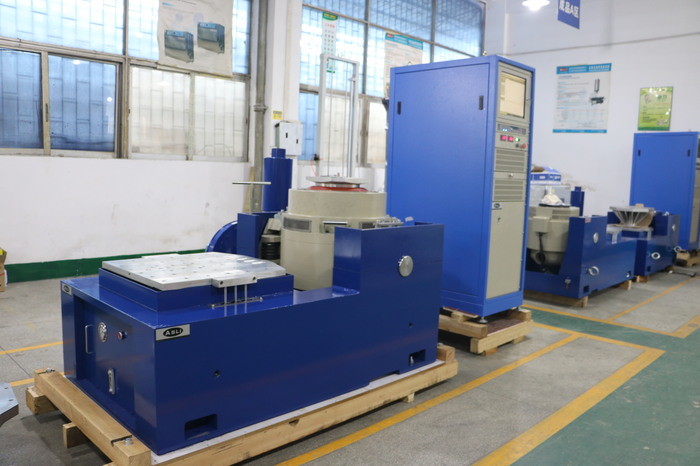

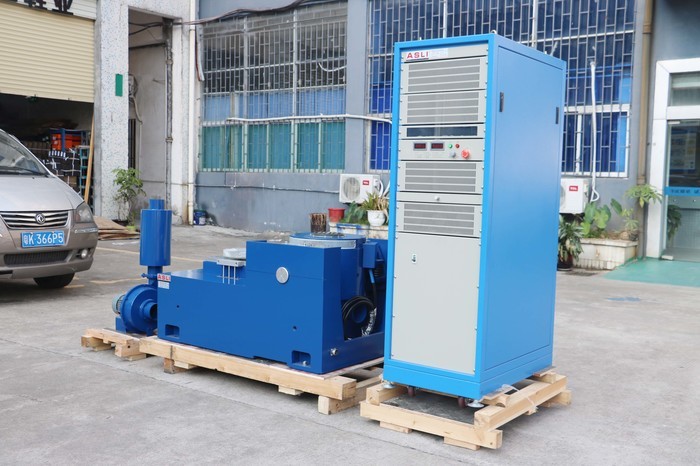

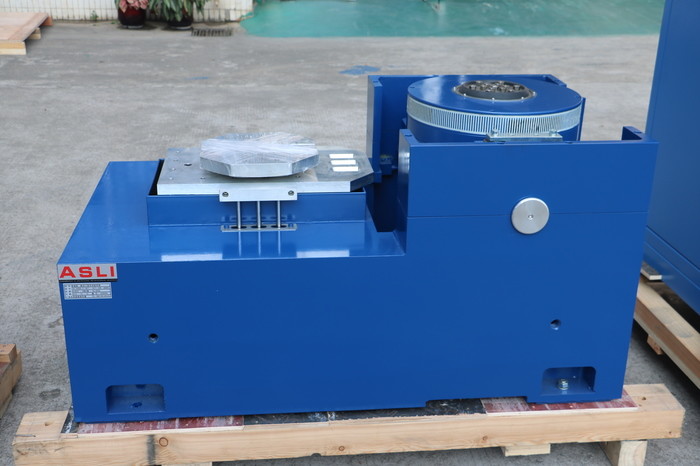

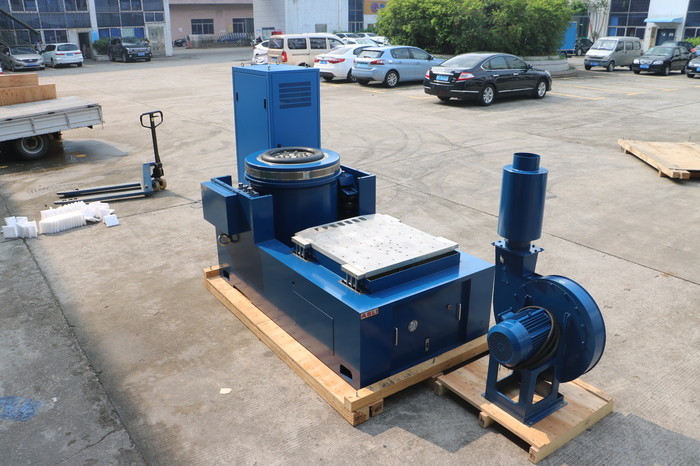

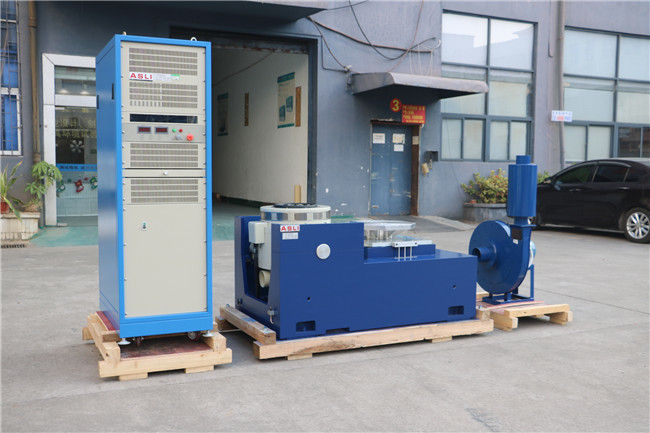

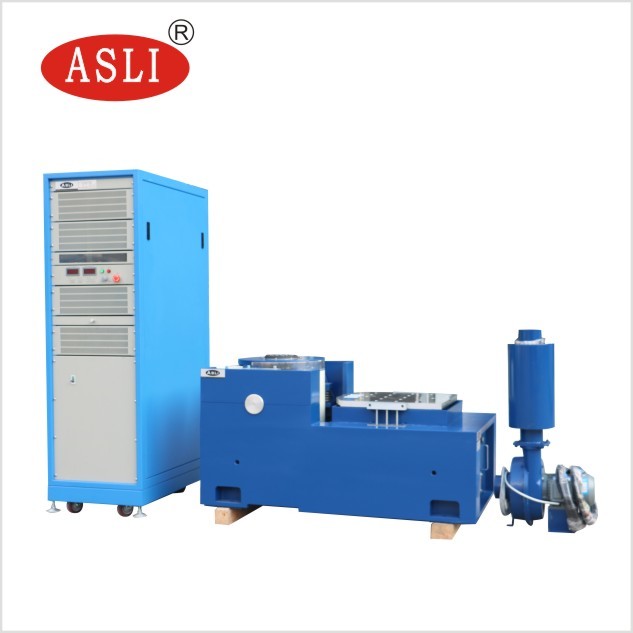

Electrodynamics High Frequency Sine and Random Shock Vibration Shaker Table
Vibration tester is extremely broad, from circuit board, battery, plane, ship, rocket, missile, cars and home appliances and other industrial products.
Vibration test system is mainly used for products vibration and shock environment test, environmental stress screening test, reliability test.
Technical Parameters:
Model |
Rated Sine Force (N) |
Rated Random Force (N) |
Frequency Range (Hz) |
Rated Acceleration (m/s2) | Rated Speed(m/s) |
Rated displacement (p-p)mm |
Max. Loading (Kg) | moving coil(Kg) |
Dimension of Moving coil(mm) |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
Test standard:
GB/T 31486-2015 <Electrical performance requirements and test methods for traction battery of electric vehicle> Test requirements
UL 1642:2012 < Standard for Lithium batteries>
UL 2054: 2012 < Household and Commercial Batteries>
UN38.3(2012) <Part 3: proposal for dangerous goods transport - test and standard manual>
IEC62133-2:2017 < Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications-Parts 2: Lithium systems>
IEC 62281: 2004 <The safety requirements in transport of Lithium battery and battery>
IEC 60086: 2007 <Galvanic cell part 4 the security requirements of lithium-ion batteries>
Electrodynamics High Frequency Sine and Random Shock Vibration Shaker Table completely according to the standard design battery related testing, simulation, under the certain condition of the vibration test of battery, the battery or battery pack is fixed on the vibration table, according to the prescribed frequency, acceleration and displacement mode along the battery sample vibration of three mutually perpendicular direction measured battery should not leak, don't lose heart, not broken, no fire and explosion.
Besides vibration test bench, our product range also covers:
(1) Temperature/ humidity test series: Temperature humidity test chamber, Walk in stability, Thermal shock test chamber, Temperature Humidity UV test chamber, Ramp rate temperature chamber.
(2) Aging test series: High Temperature oven, Vacuum drying oven, Air ventilation aging test chamber, Steam aging test chamber, Ozone test chamber, Burn in test equipment
(3) Weather simulation test series: Rain spray test chamber, dust test chamber, Xenon lamp aging test chamber, UV resistance test chamber
(4) Mechanical test series: Vibration test machine, Drop test machine , Bump Test Machine, Acceleration mechanical shock tester etc.
Any doubt or needs about Electrodynamics High Frequency Sine and Random Shock Vibration Shaker Table, please don't hesitate to send your inquiry.
