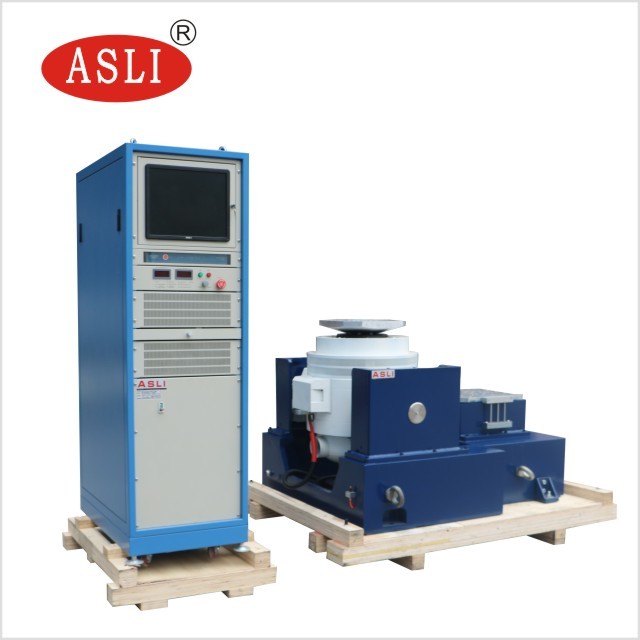

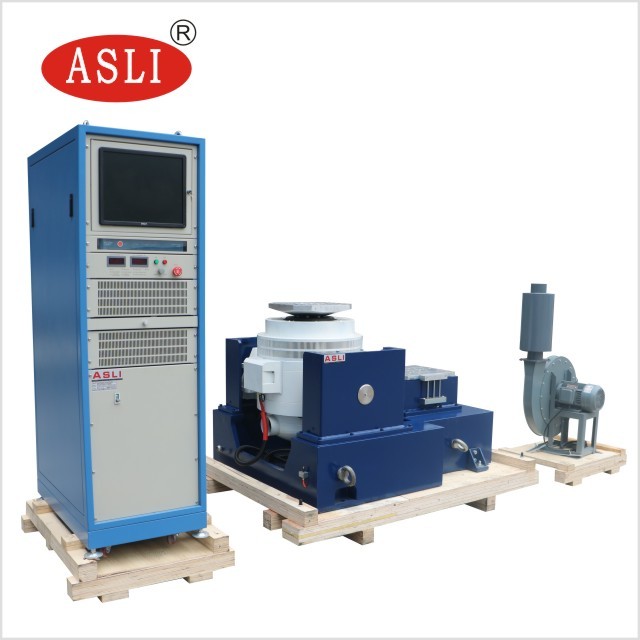

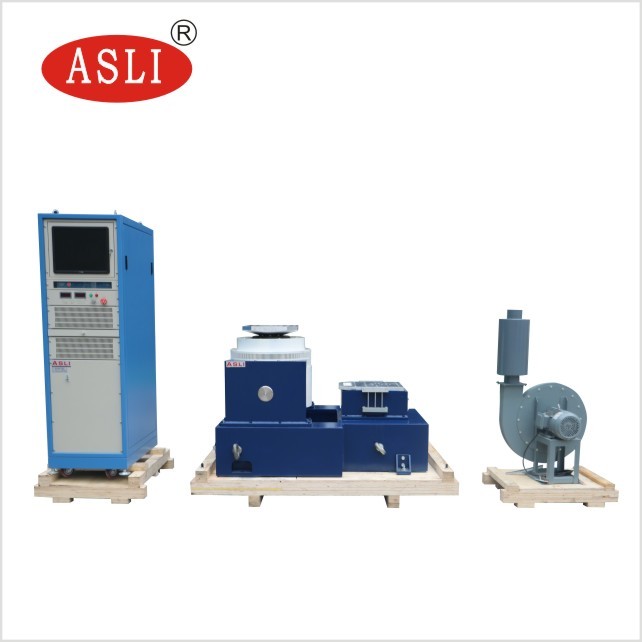

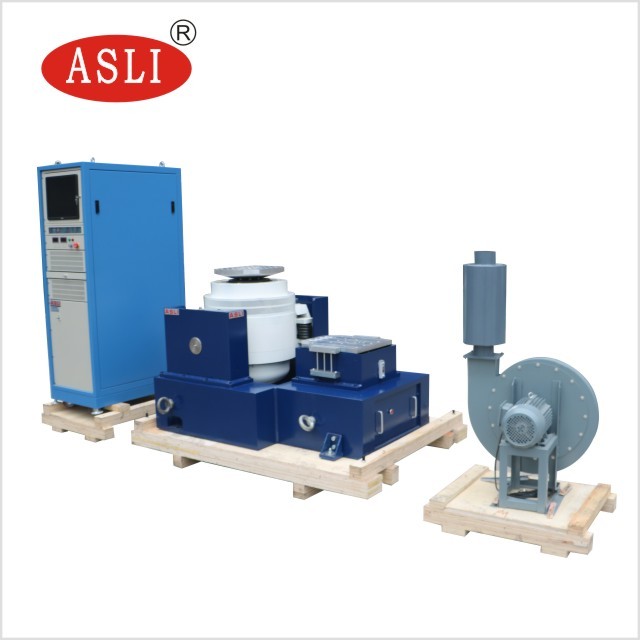

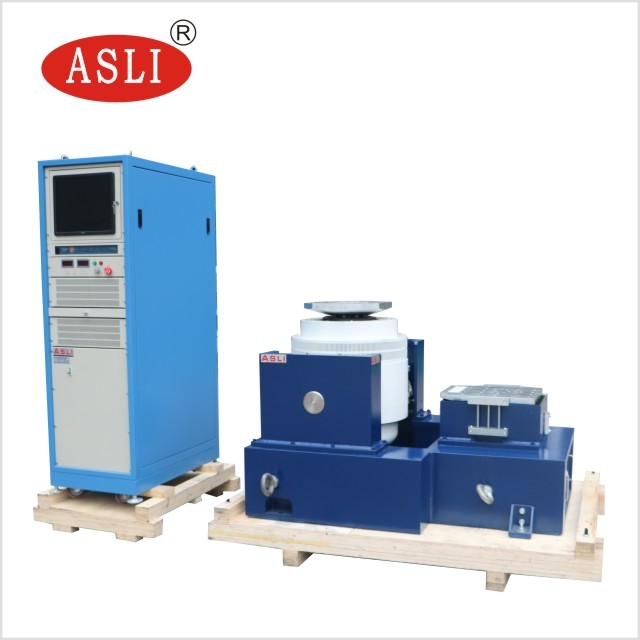

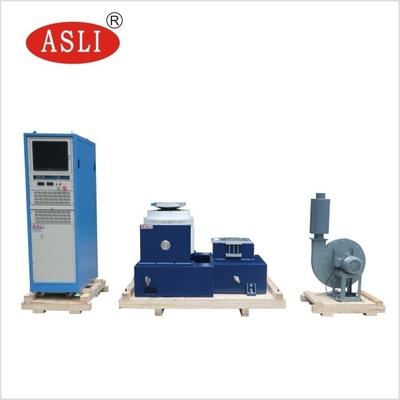

14kg Electrodynamic Shaker With Frequency Range Of 0-1000 Hz
Product Details
| Product Name: | Electrodynamic Shaker | Application: | Defense, Aerospace, Auto Parts, PCB Board, Electronics |
|---|---|---|---|
| Displacement: | 51mm | Frequency Range: | 3Hz To 2,000 Hz |
| Velocity: | 1.8m/s | Maximum Load: | 270kg |
| Shaking Force: | 1000kgf(10000N) | Mode: | Sine, Random, Shock,Resonance Search And Stay |
| Highlight |
14kg Electrodynamic Shaker,Electrodynamic Shaker 1000 Hz,Electrodynamic Shaker for Aerospace |
||
Product Description
Product Description:
Electrodynamic vibration shakers are specialized equipment used for a variety of applications, including defense, aerospace, automotive parts, PCB boards, and electronics. Our Electrodynamic Shaker System is designed for use in a wide range of vibration testing scenarios and offers maximum acceleration of 100 G, shaking force of 1000kgf (10000N), frequency range from 3Hz to 2,000 Hz, and a maximum load of 270kg. It is an ideal electrodynamic shaker equipment for industrial and academic use.
Our Electrodynamic Shaker System features an advanced electromagnetic drive system that provides high-frequency, high-amplitude, and precise force control. The system is also designed to minimize noise levels while providing superior vibration testing performance. It is also capable of performing a variety of tests such as random, sine, shock and other tests. With its wide range of features and capabilities, the Electrodynamic Shaker System is the ideal solution for vibration testing needs.
Features:
- Product Name: Electrodynamic Shaker
- Frequency Range: 3Hz To 2,000 Hz
- Weight of Moving Coil: 14kg
- Velocity: 1.8m/s
- Maximum Acceleration: 100 G
- Maximum Load: 270kg
- Electrodynamic Vibration Device
Technical Parameters:
| Product Name | Electrodynamic Shaker |
|---|---|
| Maximum Acceleration | 100 G |
| Maximum Load | 270kg |
| Application | Defense, Aerospace, Auto Parts, PCB Board, Electronics |
| Displacement | 51mm |
| Velocity | 1.8m/s |
| Mode | Sine, Random, Shock,Resonance Search And Stay |
| Weight of Moving Coil | 14kg |
| Frequency Range | 3Hz To 2,000 Hz |
| Shaking Force | 1000kgf(10000N) |
Applications:
ASLI's Electrodynamic Shaker ES-10 is a reliable and cost-effective vibration testing equipment specialized for defense, aerospace, auto parts, PCB board and electronics. With a displacement of 51mm and a maximum acceleration of 100 G, it is able to simulate high frequency and high acceleration vibration conditions for testing and verification. With a weight of moving coil of 14kg, the ES-10 is capable of producing electrodynamic vibration that is great for high-level vibration tests.
The ES-10 is able to generate a wide range of vibration signals with its advanced Electrodynamic Vibration Shaker Equipment, greatly improving the accuracy and efficiency of its vibration testing. It is suitable for all kinds of vibration testing, including random, shock, sine, and fatigue tests. It is reliable, easy to set up and operate, and can be used in a variety of industries for testing and verification.
ASLI's ES-10 Electrodynamic Shaker is a reliable and cost-effective choice for vibration testing and verification. It is reliable, easy to set up and operate, and is suitable for all kinds of vibration testing. With its high frequency, high acceleration, and advanced Electrodynamic Vibration Shaker Equipment, the ES-10 is the perfect choice for any industry.
Support and Services:
We provide comprehensive technical support and service for our Electrodynamic Shaker products, including:
- Troubleshooting technical issues
- Replacement parts and components
- On-site service and repair
- Software updates and upgrades
- User manuals and documentation
Our technical support team is available 24/7 to answer any questions you may have. Contact us today for more information.
Packing and Shipping:
Electrodynamic shaker products are packaged securely to protect them during shipping. The customer will receive their order in a padded box to ensure the product arrives safely.
The package includes the Electrodynamic Shaker itself, along with any additional parts that might be needed to install the product. Additional documents, such as installation instructions, may also be included.
The shipping method for Electrodynamic Shaker depends on the customer's location and speed of delivery. We use reputable shipping companies to deliver the product safely and on time.
