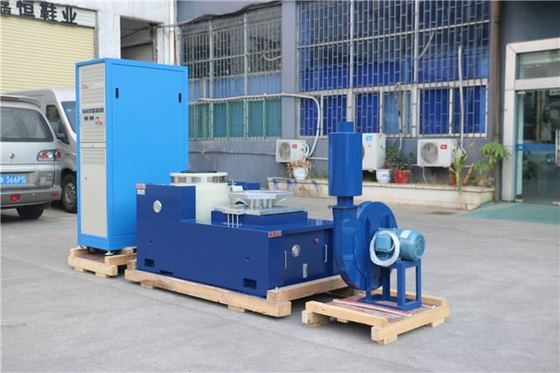

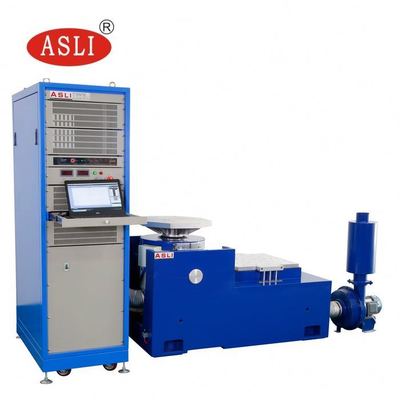

High Frequency Vibration Test Stand with 20KN Vibration Force 100g Acceleration and Computer Control
Product Details
| Vibration Direction: | Vertical Vibration | Vibration Force: | 20KN |
|---|---|---|---|
| Control Method: | Computer Control | Acceleration: | 100g |
| Frequency Range: | 3~3500hz | Moving Coil Weight: | 30kg |
| Rated Sine Force: | 20000N | Rated Acceleration: | 1000m/s2 |
| Rated Speed: | 1.8m/s | Rated Displacement: | 80mm |
| Max Loading: | 300Kg | Moving Coil Dimension: | Φ320mm |
| Frequency Range: | 3-3000Hz | Power Type: | Electronic |
| Highlight |
20KN Vibration Force Vibration Testing Machine,100g Acceleration Electrodynamic Vibration Shaker,Computer Control High Frequency Vibration Test Stand |
||
Product Description
The High Frequency Vibration Test Stand is primarily used for product vibration and shock environmental testing, environmental stress screening, and reliability testing. It is essential for products in aerospace, communications, electronics, electrical, home appliances, and other industries. This test platform meets a wide range of test specifications, including IEC, MIL-STD, JIS, ASTM, and others.
| Model | ES-10 | ES-20 | ES-30 | ES-40 |
|---|---|---|---|---|
| Rated Sine Force (N) | 10000 | 20000 | 30000 | 40000 |
| Frequency Range (Hz) | 3–3000 | 3–3000 | 3–2800 | 3–2800 |
| Rated Acceleration (m/s²) | 1000 | 1000 | 1000 | 1000 |
| Rated Speed (m/s) | 1.8 | 1.8 | 1.8 | 1.8 |
| Rated Displacement (p-p) mm | 70 | 80 | 11100 | 100 |
| Max. Loading (Kg) | 270 | 300 | 450 | 500 |
| Moving Coil (Kg) | 14 | 30 | 40 | 50 |
| Dimension of Moving Coil (mm) | Φ240 | Φ320 | Φ450 | Φ450 |
- Flexible suspension system and straight-line guide provide strong bearing capacity, excellent guidance performance, and high stability.
- The central load airbag offers high static stiffness and low dynamic stiffness, ensuring strong bearing capacity and excellent dynamic performance.
- Rapid self-examination diagnostics and chain protection ensure high safety and reliability.
- The airbag isolating and damping device eliminates the need for a special foundation, perfectly reproduces vibration waves, and reduces vibration transmission.

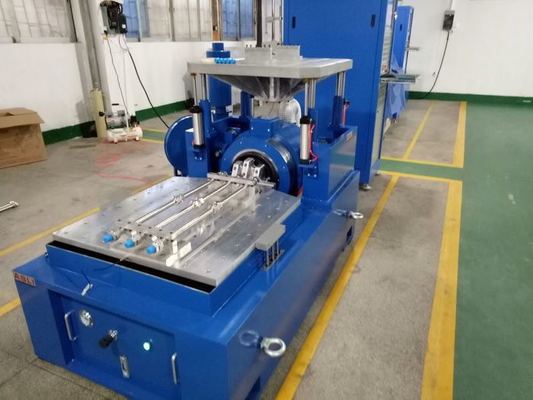

- Provides different horizontal and vertical expansion platforms for versatile testing setups.
- Compatible with all types of vibration controllers for simple operation.
- Within a small loading bench, it achieves higher acceleration and working frequency, improving the loading capacity and overall performance of the entire machine bench.
- The horizontal bench and vibration bench are an integral unit with a perfect structure, offering convenience for installation and adjustment.
- Static pressure track, V-shape design, with capacity for slope-resistant and bias-loading resistant operation.
- Built-in oil pump for a good structure and easy operation.
To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.
We are a long-established testing equipment manufacturer with 28 years of experience dedicated to simulation environmental testing equipment and mechanical vibration and shock testing machines. Our horizontal and vertical vibration 3-axis high frequency vibration tester is a star product, and we have obtained CE certification for this machine.
A: PP film first, then 10mm foam between the machine and the case, and outside is a standard export plywood case.
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
A: EXW, FOB, CIF, DDU, DAP, DDP.
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the High Frequency Vibration Test Stand, please feel free to contact us.
Product Highlights
High Frequency Vibration Test Stand: 20KN vertical force, 3-3000Hz, 100g acceleration, 300kg max load. Airbag damping, no foundation needed. Meets IEC, MIL-STD, ASTM. CE certified, 28 years manufacturer, custom horizontal/vertical platforms.
