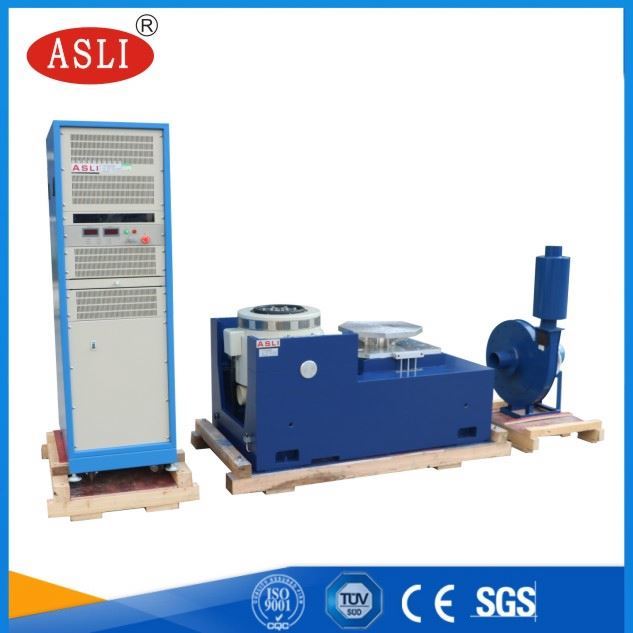

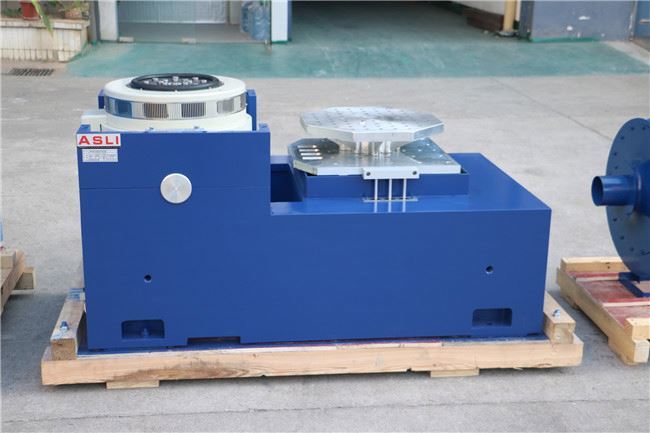

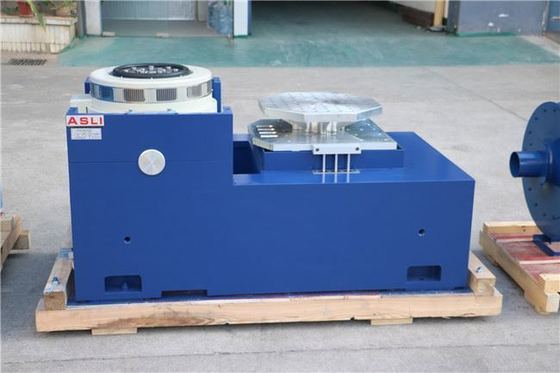

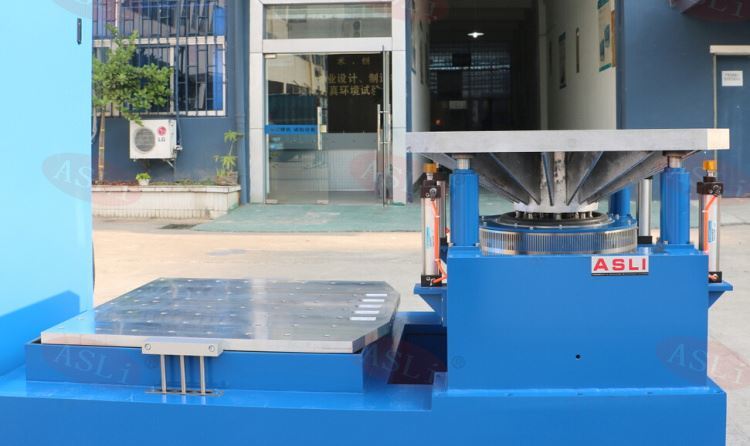

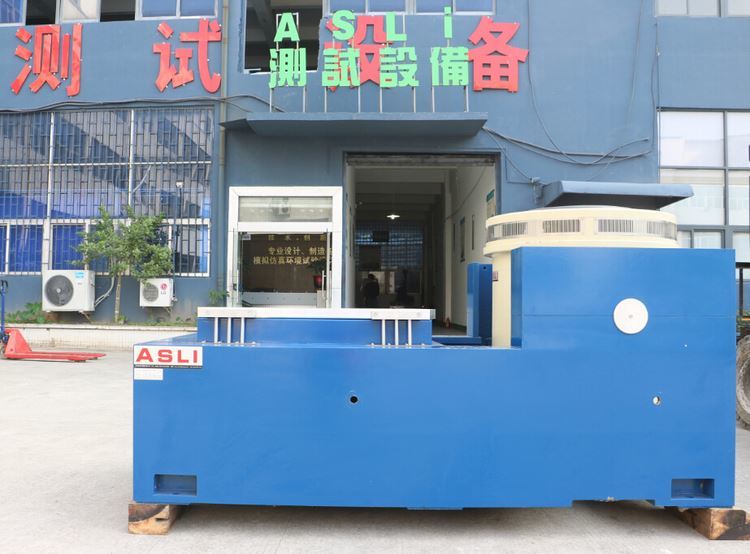

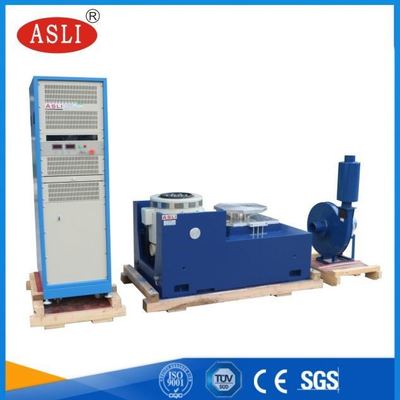

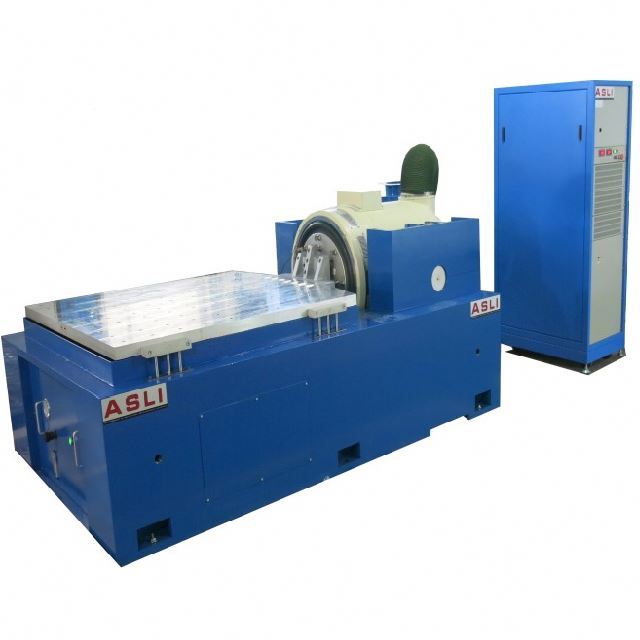

High Frequency Vibration Testing Machine with 1 Year Warranty and IEC62133 UL1642 Compliance
Product Details
| Sine Force: | 10000N | Vibration Wave: | Sine, Random, Shock |
|---|---|---|---|
| Vibration Directions: | Three Directions Free Vibration | Acceleration Sensor: | 1 Pc |
| Input Channel: | 1 Channel | Frequency Range: | 3-3000 Hz |
| Rated Acceleration: | 1000 M/s2 | Rated Speed: | 1.8 M/s |
| Rated Displacement: | 51 Mm (p-p) | Max Loading: | 270 Kg |
| Moving Coil Weight: | 14 Kg | Moving Coil Diameter: | Φ240 Mm |
| Rated Random Force: | 10000N | Cooling Method: | Air Cooling |
| Dynamic Circle Resonance: | High Stage Axial Resonance Frequency | ||
| Highlight |
1 Year Warranty Vibration Testing Machine,IEC62133 Vibration Testing Machine,UL1642 Vibration Testing Machine |
||
Product Description
The Simulation Vibration Test Device is a high-frequency vibration test apparatus designed for a variety of packaging materials, PC boards, and electrical products. It serves as a reliable vibration measuring instrument for quality assurance and product validation.
- IEC62133
- UL1642
- UN38.3
- GB31241
The working principle of the vibration tester is similar to a loudspeaker, whereby an electrical conductor is moved by the action of electromagnetic force in a magnetic field. The force to accelerate the moving part is generated by the balance between driving current and magnetic flux. Therefore, by controlling the driving current, one can control the vibration generator.
The maximum acceleration level of the electromagnetic vibration exciter is determined by the maximum current and the loading. At low frequency, displacement of the moving part is restricted such that the acceleration will not reach a high level. The resonance frequency of the moving element is set higher than the upper limit of the frequency range.
| Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s²) | Rated Speed (m/s) | Rated Displacement (p-p) mm | Max. Loading (Kg) | Moving Coil (Kg) | Dimension of Moving Coil (mm) |
|---|---|---|---|---|---|---|---|---|---|
| ES-3 | 3000 | 3000 | 3–3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3–3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3–3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3–3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3–3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3–2800 | 1000 | 1.8 | 51 | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3–2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3–2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
- Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
- Two-magnetic circuit, magnetic flux leakage low, compact structure and rational design.
- Rocker rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
- Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
- Advanced technology move around the system to ensure that the dynamic circle of high reliability.
- New duct design and enhanced cooling effect.
- Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
ASLI main products: climatic chamber, temperature chamber, humidity chamber, walk-in chamber, UV aging chamber, thermal shock chamber, xenon chamber, xenon combined UV aging chamber, PCT chamber, HAST chamber, vibration chamber, high frequency vibrating tester, mechanical shock tester, climatic combined vibration chamber, and more.
Q1. What are your terms of packing?

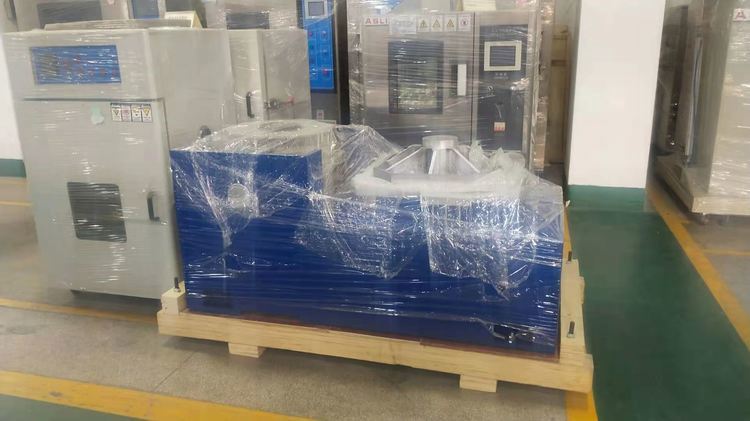

A: Generally, we pack our goods in neutral white boxes and brown cartons.
Q2. What are your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
If you need more information about the Simulation Vibration Test Device High Frequency Vibration Test Apparatus Vibration Measuring Instrument, please don't hesitate to send your inquiry.
Product Highlights
ES-10 vibration test device: 10000N sine/random force, 3-3000Hz, three-direction free vibration, 270kg max load, air cooling. Meets IEC62133, UL1642, UN38.3, GB31241. Ideal for packaging, PC boards, electrical products.
