PRODUCT DESCRIPTION
high frequency vibration testing equipment can complete sinusoidal vibration test and broadband random vibration test respectively, and can complete classic (half sinusoid, trapezoid, back peak saw tooth) pulse and shock response spectrum test.The comprehensive test of mechanics and environment conditions can be carried out with a climate chamber.
The high frequency vibration test system is widely used in the fields of national defense, weapon, aviation, spaceflight, communication, electronics, electric appliance, transportation and household appliances.
According to the requirement, it can provide users with comprehensive test equipment in multiple environments such as climate and mechanics.
Electro-dynamic vibration Shaker provides a testing platform for packing and transportation simulation, mechanical shock, mission profile and any other real-world condition simulation. Utilizing the most advanced controller, the closed-loop system can accurately reproduce real-world vibration conditions on products from the industries like electronic, automotive, aerospace, aviation, etc.
TECHNICAL PARAMETERS OF VIBRATION SYSTEM
| Item | Description | |
|
Force (Maximum) |
Sine | 600Kg.f peak |
| Random | 600Kg.f r.ms | |
| Shock | 600Kg.f peak | |
| Frequency Range | 5~2500 Hz | |
| Max. Displacement | (Peak to Peak) 51mm | |
| Max. Velocity | 1.8m/s | |
| Max. Acceleration | 100G (980 m/s2) without loading | |
| Vibration direction | Vertical and horizontal | |
| Armature Diameter | 200 mm | |
| Effective Armature Mass | 6kg | |
| Table screw | 17×M10 | |
| Max. payload | 300kg | |
| Magnetic Leakage | <10gauss | |
| Axial Vibration Isolation Frequency | 2.5HZ | |
| Allowable eccentric moment | >300N.m | |
| Dimension | 1200mm*790mm*840mm (Head Expander is excluded) | |
| Weight | 1600kg (Slip Table is excluded) | |
| Power supply | AC 3-phase 380V/50Hz,18 KVA | |
| Grounding resistance | ≤4Ω | |
| Air compressor | 0.4-0.6Mpa (provided by customer) | |
| Cooling method | Air cooling | |

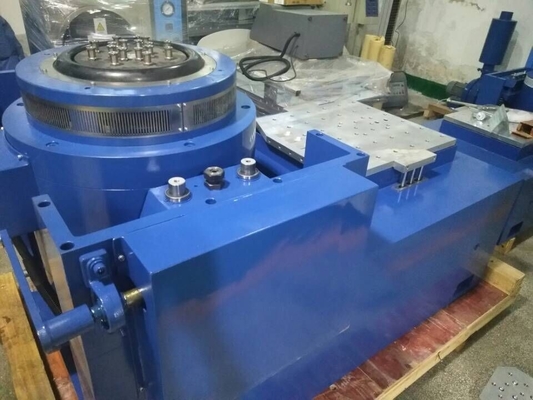

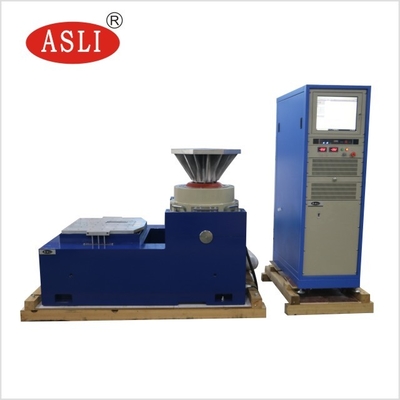

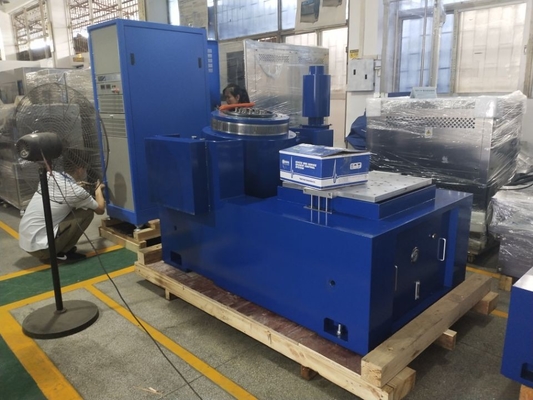

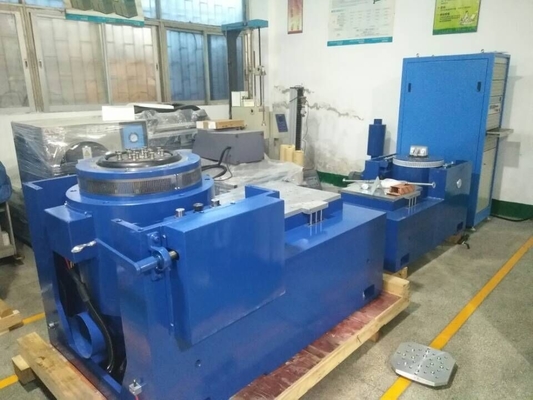

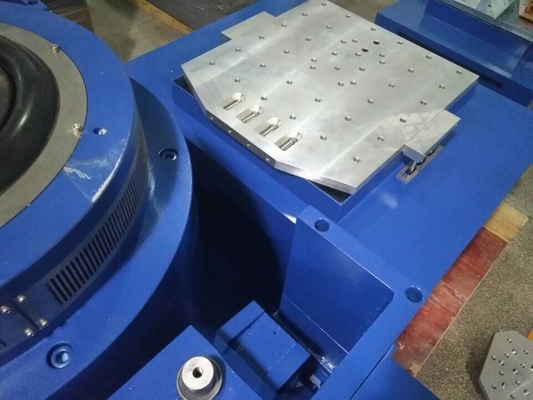

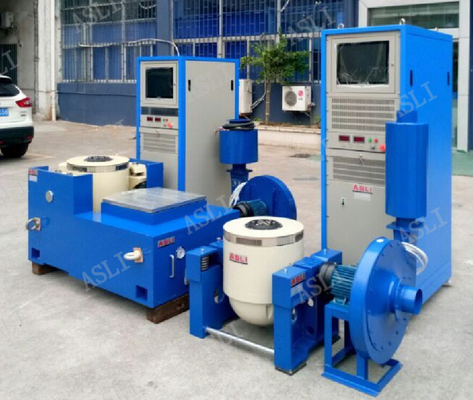

Electrodynamics Type High Frequency Shaker Table with Testing Platform 600*600mm Pictures for reference:
