Name: Acceleration Mechanical Shock Impact Tester 150G 6ms IEC60068-2-27
Brand: ASLI
SKU: ES-10
Price: 1.00 USD
Availability: InStock
Rating: 4.5 (164 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Table Size: 200*200mm

Max. Load: 10kg

Test Standard: IEC60068-2-27

Acceleration Range: 150~15000m/s2

Pulse Width: 0.6~18

Application: PCB

Test Point: 150G,6ms

Function: Impact Test

High Light:

Acceleration Mechanical Shock Impact Tester

IEC60068-2-27 Shock Impact Tester

6ms Shock Impact Tester

Basic Infomation

Place of Origin: China

Brand Name: ASLI

Certification: CE, ISO

Model Number: ES-10

Payment & Shipping Terms

Packaging Details: strongly export plywood case

Delivery Time: 50 workdays

Payment Terms: T/T, Western Union

Supply Ability: 30 sets per quatar

Gallery

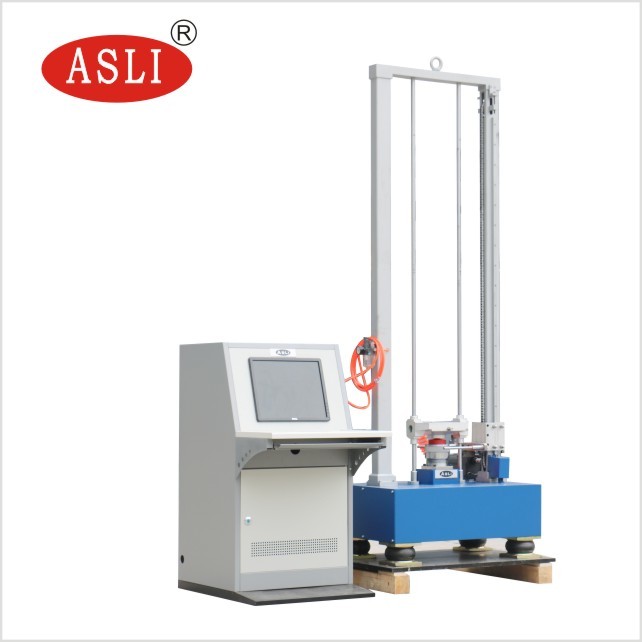

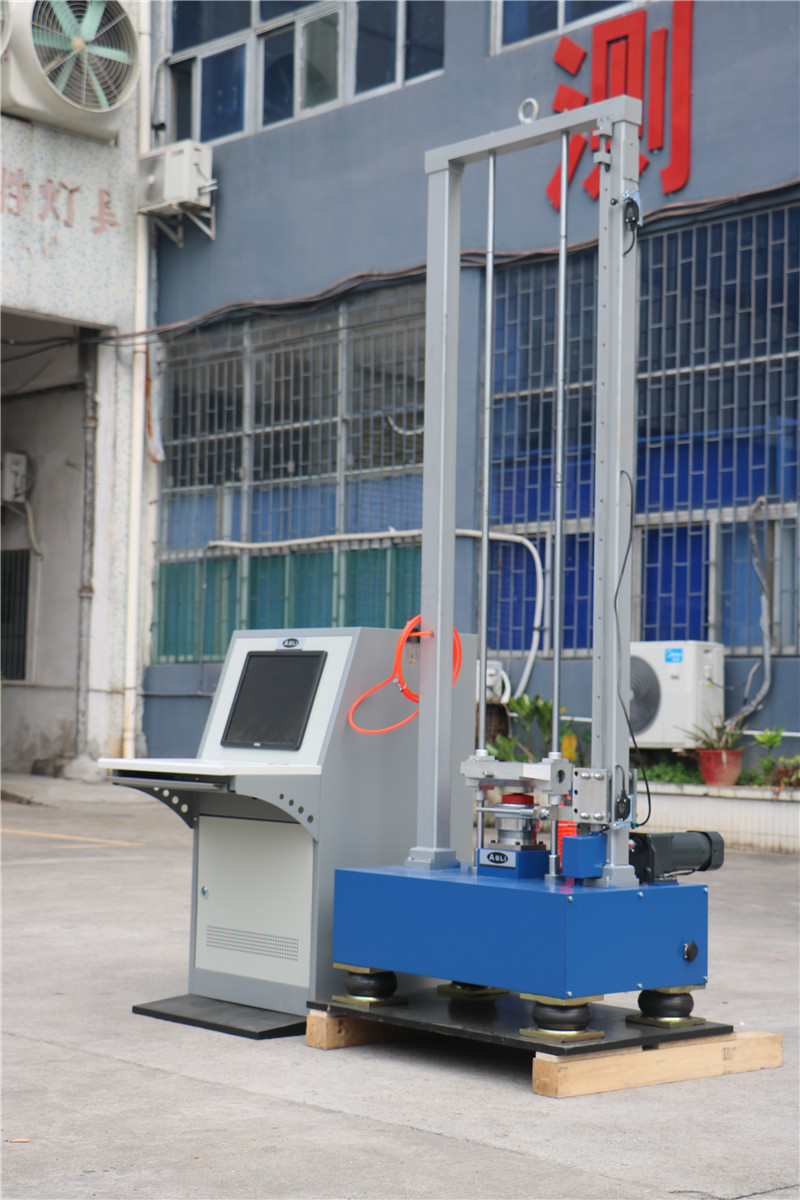

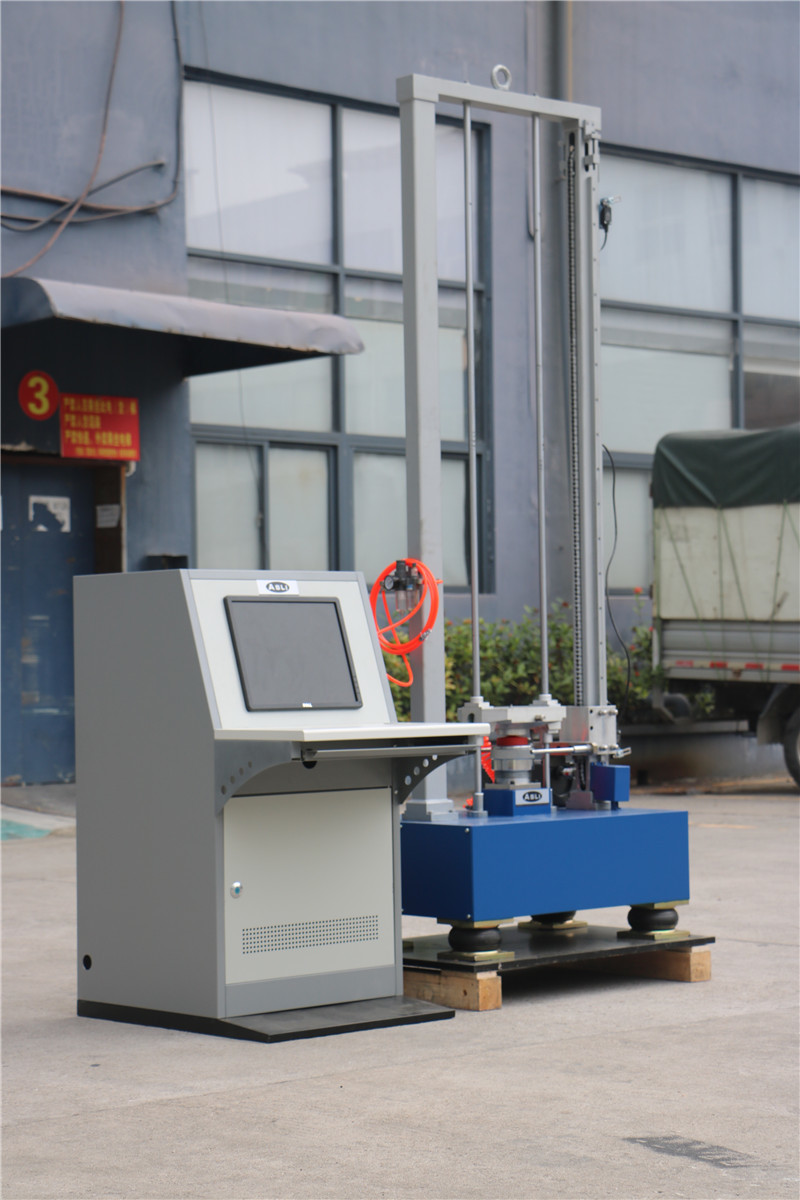

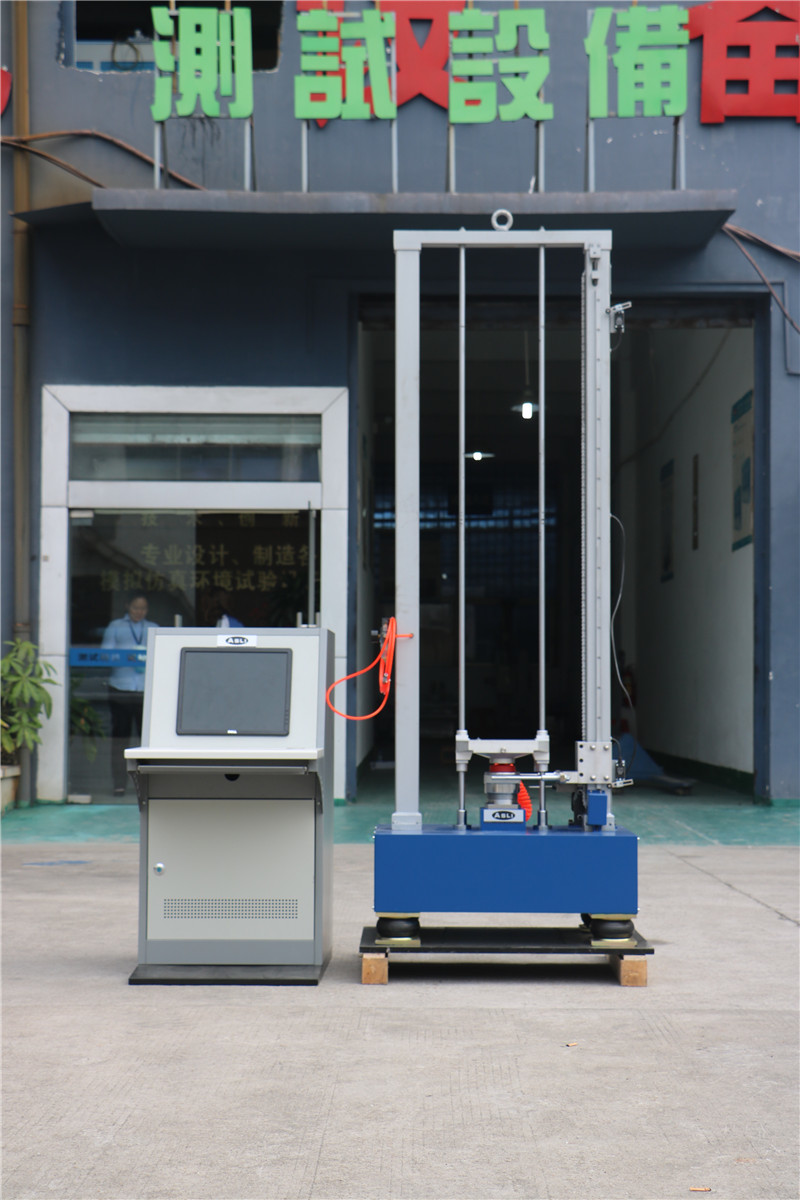

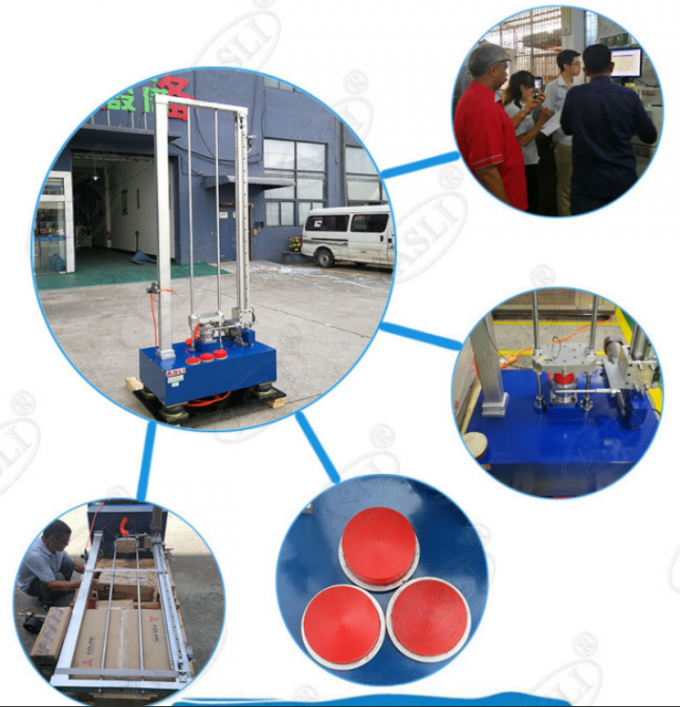

Acceleration Mechanical Shock Impact Tester 150G 6ms IEC60068-2-27

Product Description

IEC60068-2-27 Acceleration Mechanical Shock Tester is a device used to simulate and test the effects of sudden movements, impacts, and shocks on a product or equipment. The primary function of the tester is to generate mechanical shock or impulse forces that replicate real-life scenarios that can occur during transportation, handling, or use of the product or equipment. The tester works by subjecting the test specimen to a desired acceleration or force pulse profile, such as a half-sine wave, square wave, or sawtooth wave, using a mechanical load or pneumatic actuator. The generated shock pulse is then measured by accelerometers or strain gauges that are attached to the test specimen. The acceleration mechanical shock tester can provide valuable data on the robustness and durability of products or equipment, and helps in identifying design and manufacturing flaws that can lead to failures, damage, or safety hazards. It is commonly used in industries such as automotive, aerospace, electronics, and defense for product qualification, reliability testing, and quality control.

Specification

Model		SS-5	SS-10	SS-25	SS-50	SS-100	SS-200	SS-400
Load Capacity (Kg)		5	10	25	50	100	200	400
Table Size (mm)		120x120	200x200	350x350	450x450	650x650	750x750	850x850
Pulse Acceleration (m/s2)	Half Sine Wave	150~15000	150~15000	150~15000	150~6000	150~6000	150~3500	150~1500
	Trapezoid Wave	300~1000	300~1000	300~1000	300~1000	300~1000	300~1000	300~500
	Sawtooth Wave	150~1000	150~1000	150~1000	150~1000	150~1000	150~1000	150~500
Pulse width	Half Sine Wave	0.5~18	0.6~18	0.8~25	1.5~30	1.5~30	2~30	6~30
	Trapezoid Wave	6~12	6~12	6~18	6~12	6~12	6~12	6~12
	Sawtooth Wave	6~18	6~18	6~18	6~18	6~18	6~18	6~18
Drive Mode		Mechanical drive					Hydraulic drive
External Dimension WxHxD (mm)		800x2200 x900	800x2200 x900	850x2250 x950	1000x2600 x1300	1100x2700 x1400	1300x2700 x1600	1300x2700 x1650
Weight (Kg)		600	700	900	2600	3300	4000	4500
Hydraulic Oil		No #46 hydraulic oil
Power		AC 380V 50/60HZ

IEC60068-2-27 Acceleration Mechanical Shock Tester Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.
7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;

The test standard that an acceleration impact tester meets can vary depending on the specific model and manufacturer. However, some common test standards that these testers may meet include: 1. International Electrotechnical Commission (IEC) 60068-2-27 - This standard specifies the acceleration, time duration, and pulse shape for electrical and electronic components subjected to mechanical shocks. 2. International Organization for Standardization (ISO) 2242- This standard specifies the method for testing the shock resistance of watches by subjecting them to an impact test. 3. ASTM D1596 - This standard specifies the requirements for testing the impact resistance of plastic film, sheeting, and molded articles by using a pendulum impact tester. 4. MIL-STD-810 - This is a series of standards developed by the US Department of Defense that covers environmental testing . Part of this standard includes testing for mechanical shock resistance. 5. UL 1642 - This standard covers the safety requirements for lithium-ion battery cells subjected to mechanical shock or impact. It's important to note that different industries and applications may require conformance to specific standards for the product to be considered compliant or fit for use.

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. IEC60068-2-27 Acceleration Mechanical Shock Tester is our star products , and we had obtained the CE certification for this machine .

FAQ

1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.

2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 50 working days after
deposit receipt. If you are in urgent need, we can consider making special arrangement for you.

3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.

5. Do you have customers of our country before?
Now our testing machines have been sold to more than 100 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.

6. How about your warranty?

Generally, our warranty is two years. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.

7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.

9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.

If you have any doubt or needs about IEC60068-2-27 Acceleration Mechanical Shock Tester, please don't hesitate to send your inquiry.
