Control Method:Programmable LCD Touch Screen Controller
Test Standard:JESD22-A110E
High Light:
PCT high pressure Test Chamber
,
High Accelerated Stress PCT Test Chamber
,
JESD22-A110E Environmental Test Chamber
Basic Infomation
Place of Origin:China
Brand Name:ASLI
Certification:CE, ISO
Model Number:HAST-35
Payment & Shipping Terms
Packaging Details:strongly export plywood case
Delivery Time:15 workdays
Payment Terms:T/T, Western Union
Supply Ability:100 sets per quatar
Gallery

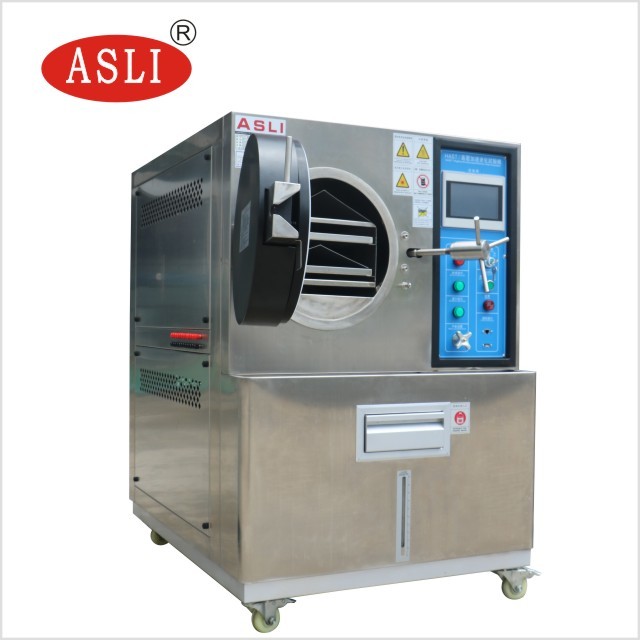

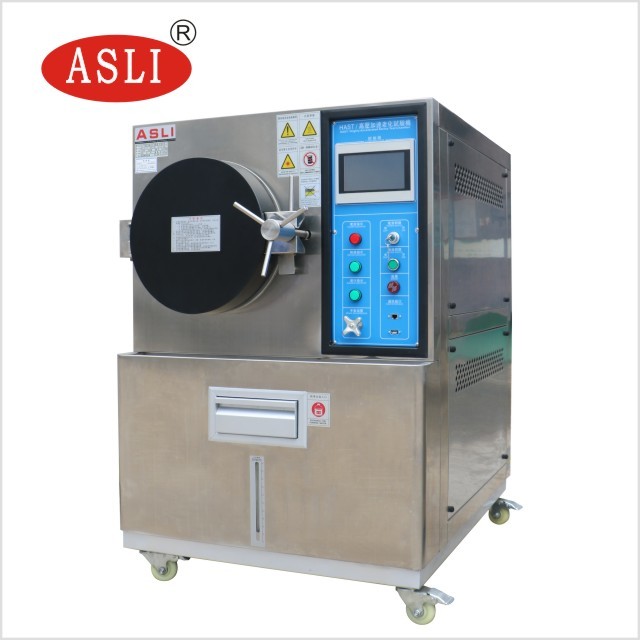

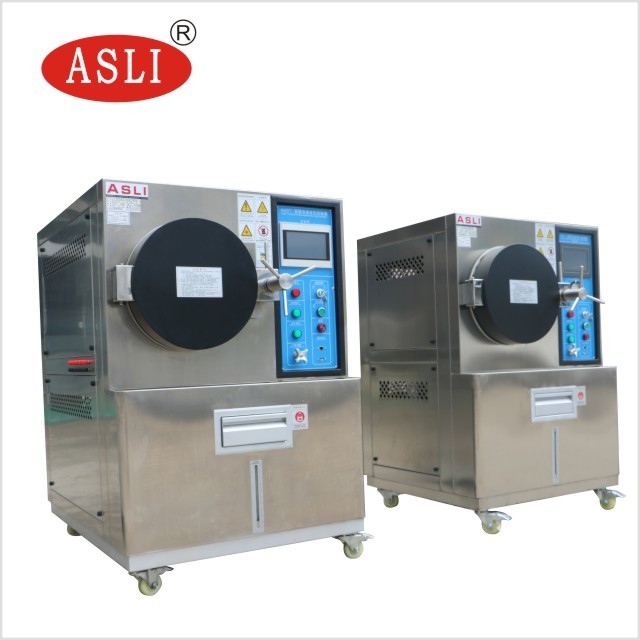

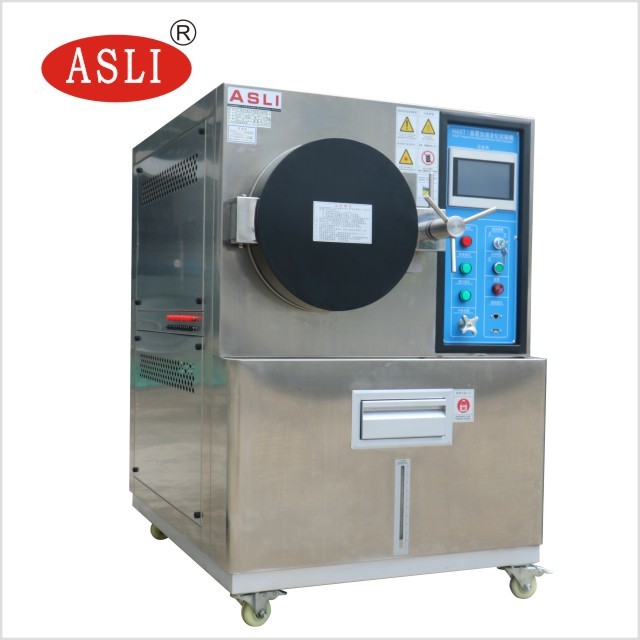

Factory High Accelerated Stress PCT High Pressure Test Chamber JESD22-A110E Price
Product Description
Product Description
Why samples need to do HAST aging test?
JESD22-A110E Standard High Humidity High Pressure Testing Chamber is a type of environmental chamber used to test the reliability and durability of electronic components and products under extreme conditions. The function of a HAST chamber is to accelerate the aging process of a product by subjecting it to high temperature and high humidity conditions.
During the HAST test, the product is placed in a sealed chamber that is heated to a high temperature, typically between 110°C to 130°C, and exposed to a high humidity environment, usually around 65% to 100% relative humidity (RH). The high temperature and humidity levels cause the materials and components of the product to expand and contract rapidly, which can accelerate the aging process and reveal any weaknesses or failures.
The HAST test is a useful tool for manufacturers to evaluate the long-term reliability and durability of their products, as well as to identify potential design flaws or weaknesses that could lead to product failure in the field. By subjecting the product to accelerated aging conditions in a HAST chamber, manufacturers can simulate years of use in a matter of days or weeks, helping them to develop more robust and reliable products.
Specification
Model
HAST - 45
HAST - 55
HAST - 65
Internal Dimension ΦxD (mm)
450x550
550x650
650x750
External Dimension ΦxD (mm)
1000x1480x1000
1150x1650x1200
1300x1800x1350
Steam Temperature Range
Steam Temperature Range: 100ºC~135ºC, (143ºC is optional)
Relative Pressure/ Absolute Pressure
Relative pressure: display values indicated on the pressure gauge
Absolute pressure: pressure gauge value adds 100 Kpa
(The actual value in the inner box)
Steam Humidity
65~100%R.H. steam humidity adjustable
Steam Pressure
(Absolute Pressure)
101.3Kpa +0.0Kg/cm2 ~ 2.0Kg/cm2 ; (3.0Kg/cm2 is special standard)
Recursive Device
Steam in forced-circulation
Equipment Capacity(L)
87
155
250
JESD22-A110E Standard High Humidity High Pressure Testing Chamber Features:
1. Automatic adding water function, and automatic filling water upon the water short storage while testing.
2. Automatic operation to test process finished, easy to use.
3. Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test complete.
5. Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6. Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7. A integrated silica gel door gasket, air tightness is very good, and long operation life.
8. The inner box is mirror-polished , graceful and non-pollution
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Accelerated Moisture Resistance Unbiased HAST Chamber for Solid State Products is our star products , and we had obtained the CE certification for this machine
